element <knockIn> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TriggerRateObservation
Content:
complex, 9 elements
Defined:
locally within OptionEvent complexType in fpml-business-events-5-13.xsd; see XML source

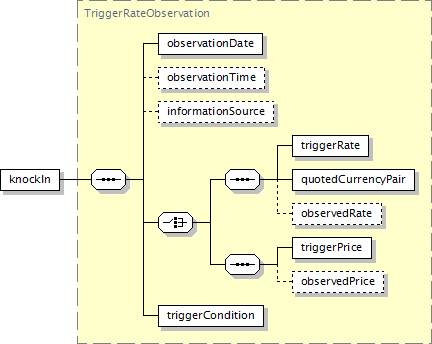

Component Diagram
XML Representation Summary
<knockIn>

Content:
observationDate, observationTime?, informationSource?, ((triggerRate, quotedCurrencyPair, observedRate?) | (triggerPrice, observedPrice?)), triggerCondition
</knockIn>
Content model elements (9):
informationSource (defined in TriggerRateObservation complexType),
observationDate (defined in TriggerRateObservation complexType),
observationTime,
observedPrice,
observedRate (defined in TriggerRateObservation complexType),
quotedCurrencyPair (defined in TriggerRateObservation complexType),
triggerCondition (defined in TriggerRateObservation complexType),
triggerPrice (defined in TriggerRateObservation complexType),
triggerRate (defined in TriggerRateObservation complexType)
Included in content model of elements (1):
optionEvent
Annotation
A structure describing a barrier knock in event
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="knockIn" type="TriggerRateObservation"/>
