element <payment> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Payment
Content:
complex, 2 attributes, 10 elements
Defined:
locally within TradeNovationContent complexType in fpml-business-events-5-13.xsd; see XML source

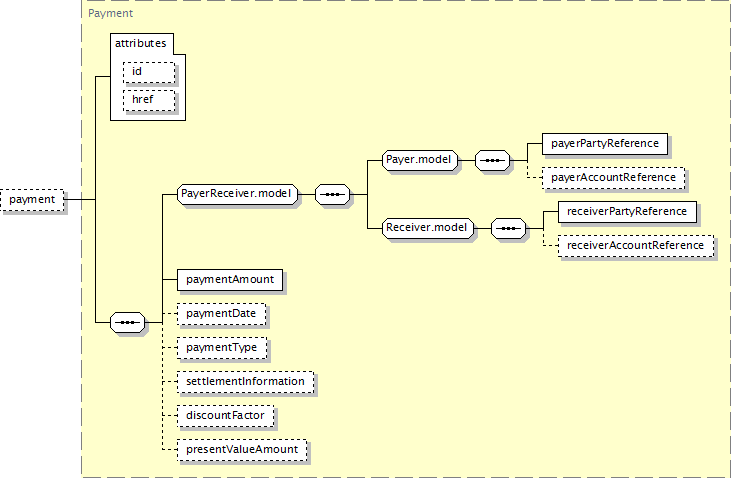

Component Diagram
XML Representation Summary
<payment

id
 =
xsd:ID
href
 =
xsd:IDREF

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate?, paymentType?, settlementInformation?, discountFactor?, presentValueAmount?
</payment>
Content model elements (10):
discountFactor (defined in Payment complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentAmount (defined in Payment complexType),
paymentDate (defined in Payment complexType),
paymentType (defined in Payment complexType),
presentValueAmount (defined in Payment complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
settlementInformation (defined in Payment complexType)
Included in content model of elements (1):
novation
Annotation
Describes a payment made in settlement of the novation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="payment" type="Payment"/>
