element <americanExercise> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommodityAmericanExercise
Content:
complex, 1 attribute, 7 elements
Defined:
locally within CommodityExerciseBasket complexType in fpml-com-5-13.xsd; see XML source

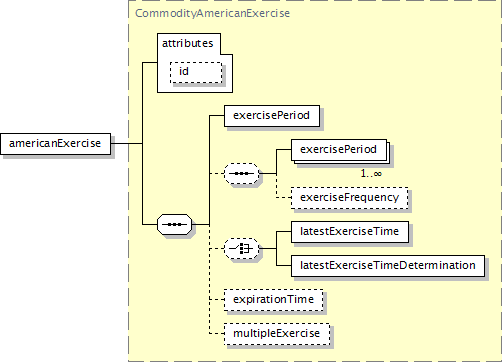

Component Diagram
XML Representation Summary
<americanExercise

id
 =
xsd:ID

>

Content:
exercisePeriod, (exercisePeriod+, exerciseFrequency?)?, (latestExerciseTime | latestExerciseTimeDetermination)?, expirationTime?, multipleExercise?
</americanExercise>
Content model elements (7):
exerciseFrequency (defined in CommodityAmericanExercise complexType),
exercisePeriod (defined in CommodityAmericanExercise complexType),
exercisePeriod (defined in CommodityAmericanExercise complexType),
expirationTime (defined in CommodityAmericanExercise complexType),
latestExerciseTime (defined in CommodityAmericanExercise complexType),
latestExerciseTimeDetermination (defined in CommodityAmericanExercise complexType),
multipleExercise (defined in CommodityAmericanExercise complexType)
Included in content model of elements (1):
exercise  (in commodityBasketOption)
Annotation
The parameters for defining the exercise period for an American style option together with the rules governing the quantity of the commodity that can be exercised on any given exercise date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="americanExercise" type="CommodityAmericanExercise"/>
