element <fx> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommodityFx
Content:
complex, 18 elements
Defined:
locally within FloatingLegCalculation complexType in fpml-com-5-13.xsd; see XML source

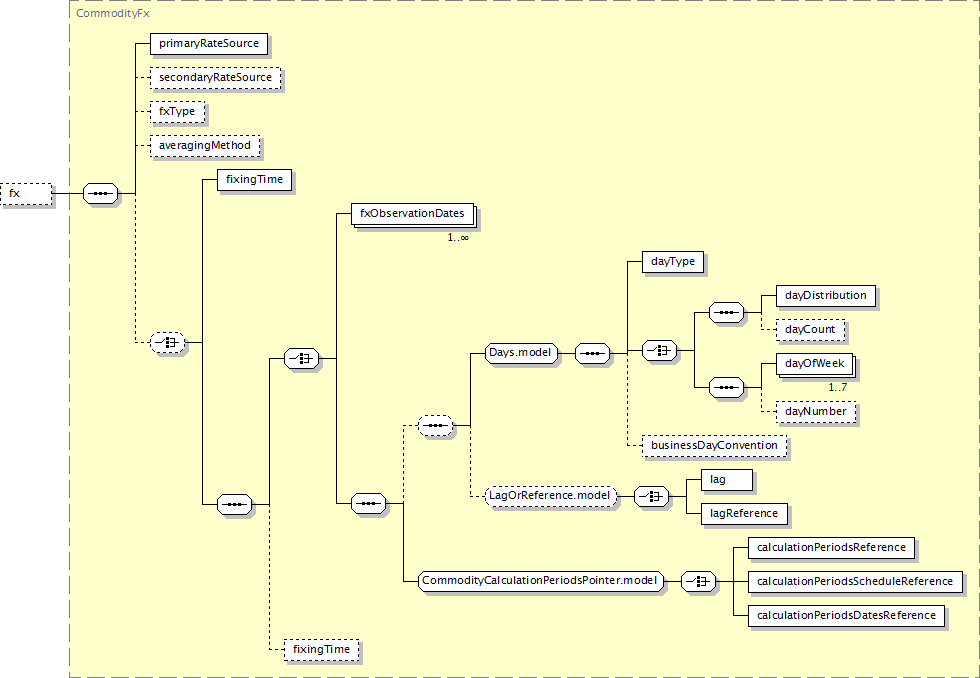

Component Diagram
XML Representation Summary
<fx>

Content:
primaryRateSource, secondaryRateSource?, fxType?, averagingMethod?, (fixingTime | ((fxObservationDates+ | ((dayType, ((dayDistribution, dayCount?) | (dayOfWeek[1..7], dayNumber?)), businessDayConvention?, (lag | lagReference)?)?, (calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference))), fixingTime?))?
</fx>
Content model elements (18):
averagingMethod (defined in CommodityFx complexType),
businessDayConvention (defined in Days.model group),
calculationPeriodsDatesReference,
calculationPeriodsReference,
calculationPeriodsScheduleReference,
dayCount,
dayDistribution,
dayNumber,
dayOfWeek,
dayType (defined in Days.model group),
fixingTime (defined in CommodityFx complexType),
fixingTime (defined in CommodityFx complexType),
fxObservationDates,
fxType,
lag (defined in LagOrReference.model group),
lagReference,
primaryRateSource (defined in CommodityFx complexType),
secondaryRateSource (defined in CommodityFx complexType)
Included in content model of elements (3):
calculation (in averagePriceLeg),
calculation (in floatingLeg),
floatingStrikePricePerUnit
Annotation
Defines how observations of FX prices are to be used to calculate a factor with which to convert the observed Commodity Reference Price to the Settlement Currency.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fx" type="CommodityFx"/>
