element <lagDuration> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Period
Content:
complex, 1 attribute, 2 elements
Defined:
locally within Lag complexType in fpml-com-5-13.xsd; see XML source

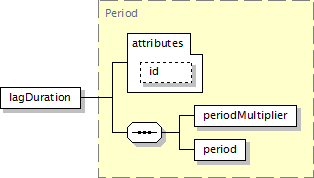

Component Diagram
XML Representation Summary
<lagDuration

id
 =
xsd:ID

>

Content:
periodMultiplier, period
</lagDuration>
Content model elements (2):
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
Included in content model of elements (3):
lag (defined in CommodityPricingDates complexType),
lag (defined in CommodityValuationDates complexType),
lag (defined in LagOrReference.model group)
Annotation
The period during which observations will be made. If a firstObservationDateOffset is specified, the observation period will start the specified interval prior to each Calculation Period - i.e. if the firstObservationDateOffset is 4 months and the lagDuration is 3 months, observations will be taken in months 4,3 and 2 (but not 1) prior to each Calculation Period. If no firstObservationDate is specified, the observation period will end immediately preceding each Calculation Period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="lagDuration" type="Period"/>
