element <weatherStation> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
WeatherStation
Content:
complex, 4 elements
Defined:
locally within WeatherIndexData complexType in fpml-com-5-13.xsd; see XML source

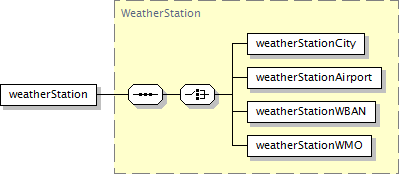

Component Diagram
XML Representation Summary
<weatherStation>

Content:
weatherStationCity | weatherStationAirport | weatherStationWBAN | weatherStationWMO
</weatherStation>
Content model elements (4):
weatherStationAirport, weatherStationCity, weatherStationWBAN, weatherStationWMO
Included in content model of elements (2):
weatherIndexData (in commodityOption),
weatherIndexData (in weatherLeg)
Annotation
The source or sources of weather index data specified by the parties in the related Confirmation. Examples include: AU-CBM (the Commonwealth Bureau of Meteorology in Australia) and CM-SMI (the Swiss Meteorological Institute).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="weatherStation" type="WeatherStation"/>
