element <fixedLeg> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FixedPaymentLeg
Content:
complex, 1 attribute, 8 elements
Defined:
locally within DividendSwapTransactionSupplement complexType in fpml-dividend-swaps-5-13.xsd; see XML source

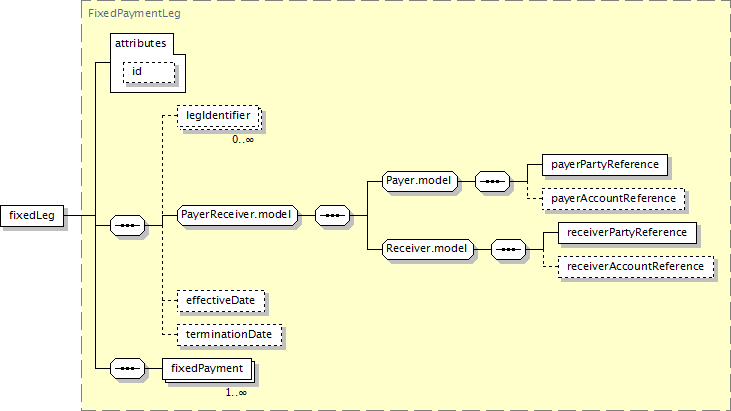

Component Diagram
XML Representation Summary
<fixedLeg

id
 =
xsd:ID

>

Content:
legIdentifier*, payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, effectiveDate?, terminationDate?, fixedPayment+
</fixedLeg>
Content model elements (8):
effectiveDate (defined in DirectionalLeg complexType),
fixedPayment,
legIdentifier (defined in DirectionalLeg complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
terminationDate (defined in DirectionalLeg complexType)
Included in content model of elements (2):
dividendSwapTransactionSupplement,
dividendSwapTransactionSupplement (in dividendSwapOptionTransactionSupplement)
Annotation
Fixed payment leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixedLeg" type="FixedPaymentLeg"/>
