element <settlementDate> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	AdjustableOrRelativeDate
Content:	complex, 1 attribute, 2 elements
Defined:	locally within EquityExerciseValuationSettlement complexType in fpml-eqd-5-13.xsd; see XML source

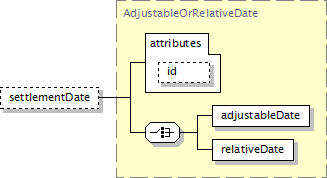

Component Diagram

XML Representation Summary

<settlementDate

xsd:ID

Content:

adjustableDate | relativeDate

</settlementDate>

Content model elements (2):

adjustableDate (defined in AdjustableOrRelativeDate complexType),

relativeDate (defined in AdjustableOrRelativeDate complexType)

Included in content model of elements (3):

equityExercise (defined in EquityDerivativeBase complexType),

equityExercise (in dividendSwapOptionTransactionSupplement),

equityExercise (in varianceOptionTransactionSupplement)

Annotation

The date when the option is to be settled relative to the valuation date. If the settlement date is not specified explicitly then settlement will take place on the valuation date.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="settlementDate" type="AdjustableOrRelativeDate"/>
