element <crossRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CrossRate
Content:
complex, 6 elements
Defined:
locally within ExchangeRate complexType in fpml-fx-5-13.xsd; see XML source

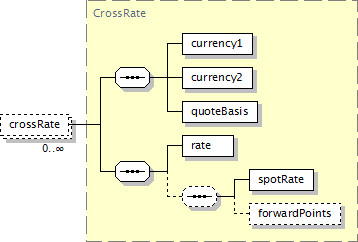

Component Diagram
XML Representation Summary
<crossRate>

Content:
currency1, currency2, quoteBasis, rate, (spotRate, forwardPoints?)?
</crossRate>
Content model elements (6):
currency1 (defined in QuotedCurrencyPair complexType),
currency2 (defined in QuotedCurrencyPair complexType),
forwardPoints (defined in CrossRate complexType),
quoteBasis (defined in QuotedCurrencyPair complexType),
rate (defined in CrossRate complexType),
spotRate (defined in CrossRate complexType)
Included in content model of elements (1):
exchangeRate  (defined in FxCoreDetails.model group)
Annotation
An optional element that allow for definition of the currency exchange rates used to cross between the traded currencies for non-base currency FX contracts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="crossRate" type="CrossRate"/>
