element <tradeIdentifierReference> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	PartyTradeIdentifierReference
Content:	empty, 1 attribute
Defined:	locally within FxSwapLeg complexType in fpml-fx-5-13.xsd; see XML source

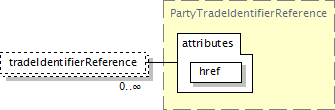

Component Diagram

XML Representation Summary

<tradeIdentifierReference

href

xsd:IDREF

Included in content model of elements (2):

farLeg (in fxSwap),

nearLeg (in fxSwap)

Annotation

A reference to a party trade ID. This is provided in case the message creator wishes to record that the swap leg is assocatiated with a particular trade identifier; typically this is used for identifying a USI assocatied wih the leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="tradeIdentifierReference" type="PartyTradeIdentifierReference"/>
