element <counterCurrencyAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
NonNegativeAmountSchedule
Content:
complex, 1 attribute, 3 elements
Defined:
locally within FxAccrualLinearPayoffRegion complexType in fpml-fx-accruals-5-13.xsd; see XML source

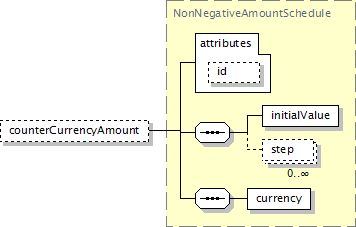

Component Diagram
XML Representation Summary
<counterCurrencyAmount

id
 =
xsd:ID

>

Content:
initialValue, step*, currency
</counterCurrencyAmount>
Content model elements (3):
currency (defined in NonNegativeAmountSchedule complexType),
initialValue (defined in NonNegativeSchedule complexType),
step (defined in NonNegativeSchedule complexType)
Included in content model of elements (1):
linearPayoffRegion  (in fxAccrualForward)
Annotation
The opposite currency amount. The counterCurrencyAmount element is only optional if averageStrike component is present or if the accrualRegion specifies the amount of counterCurrencyAmount to accrue, in all other cases this element must be populated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="counterCurrencyAmount" type="NonNegativeAmountSchedule"/>
