element <notionalStepSchedule> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
NonNegativeAmountSchedule
Content:
complex, 1 attribute, 3 elements
Defined:
locally within Notional complexType in fpml-ird-5-13.xsd; see XML source

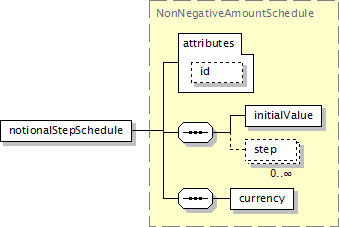

Component Diagram
XML Representation Summary
<notionalStepSchedule

id
 =
xsd:ID

>

Content:
initialValue, step*, currency
</notionalStepSchedule>
Content model elements (3):
currency (defined in NonNegativeAmountSchedule complexType),
initialValue (defined in NonNegativeSchedule complexType),
step (defined in NonNegativeSchedule complexType)
Included in content model of elements (1):
notionalSchedule
Annotation
The notional amount or notional amount schedule expressed as explicit outstanding notional amounts and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="notionalStepSchedule" type="NonNegativeAmountSchedule"/>
