element <cashSettlementCurrency> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Currency
Content:	simple, 1 attribute
Defined:	locally within ReplacementValueMethodBase complexType in fpml-ird-5-13.xsd; see XML source

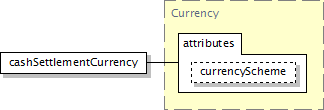

Component Diagram

XML Representation Summary

<cashSettlementCurrency

currencyScheme

xsd:anyURI : "http://www.fpml.org/coding-scheme/external/iso4217"

Content:

{ xsd:normalizedString }

</cashSettlementCurrency>

Simple Content Detail:

MaxLength:	255
MinLength:	0

Included in content model of elements (2):

calculationAgentDetermination (in replacementValue),

firmQuotations

Annotation

The currency, or currencies, in which the cash settlement amount(s) will be calculated and settled. While the order in which the currencies are stated is unimportant, the cash settlement currency or currencies must correspond to one or both of the constituent currencies of the swap transaction.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="cashSettlementCurrency" type="Currency"/>
