element <fxSpotRateSource> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxSpotRateSource
Content:
complex, 3 elements
Defined:
locally within Quanto complexType in fpml-option-shared-5-13.xsd; see XML source

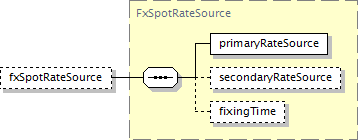

Component Diagram
XML Representation Summary
<fxSpotRateSource>

Content:
primaryRateSource, secondaryRateSource?, fixingTime?
</fxSpotRateSource>
Content model elements (3):
fixingTime (defined in FxSpotRateSource complexType),
primaryRateSource (defined in FxSpotRateSource complexType),
secondaryRateSource (defined in FxSpotRateSource complexType)
Included in content model of elements (1):
quanto
Annotation
Specifies the methodology (reference source and, optionally, fixing time) to be used for determining a currency conversion rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fxSpotRateSource" type="FxSpotRateSource"/>
