element <schedule> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AveragingSchedule
Content:
complex, 3 elements
Defined:
locally within TriggerEvent complexType in fpml-option-shared-5-13.xsd; see XML source

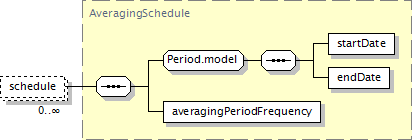

Component Diagram
XML Representation Summary
<schedule>

Content:
startDate, endDate, averagingPeriodFrequency
</schedule>
Content model elements (3):
averagingPeriodFrequency,
endDate (defined in Period.model group),
startDate (defined in Period.model group)
Included in content model of elements (5):
barrierCap,
barrierFloor,
knockIn (defined in Knock complexType),
knockOut (defined in Knock complexType),
knockOut (defined in Knock complexType)
Annotation
A Equity Derivative schedule.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="schedule" type="AveragingSchedule"/>
