element <calculationProcedure> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
DerivativeCalculationProcedure
Content:
complex, 6 elements
Defined:
locally within PricingParameterDerivative complexType in fpml-riskdef-5-13.xsd; see XML source

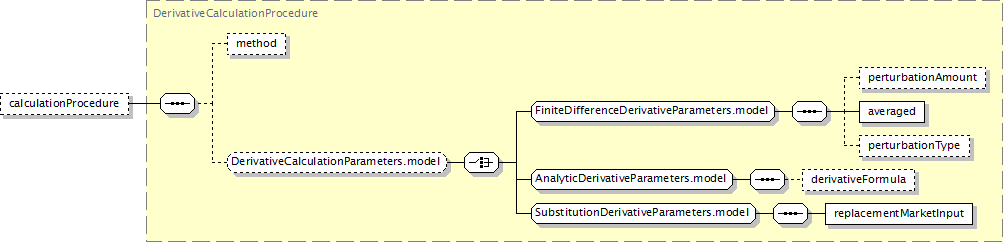

Component Diagram
XML Representation Summary
<calculationProcedure>

Content:
method?, ((perturbationAmount?, averaged, perturbationType?) | derivativeFormula? | replacementMarketInput)?
</calculationProcedure>
Content model elements (6):
averaged, derivativeFormula, method, perturbationAmount, perturbationType, replacementMarketInput
Included in content model of elements (1):
partialDerivative
Annotation
The method by which a derivative is computed, e.g. analytic, numerical model, perturbation, etc., and the corresponding parameters
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationProcedure" type="DerivativeCalculationProcedure"/>
