element <attachment> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Resource
Content:
complex, 12 elements
Defined:
locally within Documentation complexType in fpml-shared-5-13.xsd; see XML source

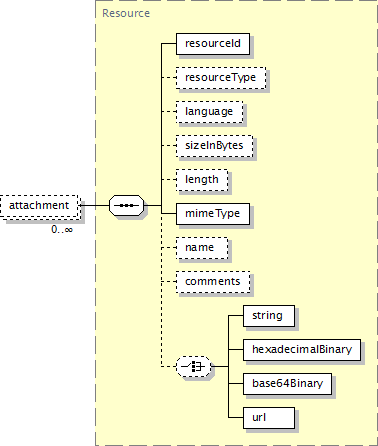

Component Diagram
XML Representation Summary
<attachment>

Content:
resourceId, resourceType?, language?, sizeInBytes?, length?, mimeType, name?, comments?, (string | hexadecimalBinary | base64Binary | url)?
</attachment>
Content model elements (12):
base64Binary (defined in Resource complexType),
comments (defined in Resource complexType),
hexadecimalBinary (defined in Resource complexType),
language,
length,
mimeType (defined in Resource complexType),
name (defined in Resource complexType),
resourceId,
resourceType,
sizeInBytes,
string (defined in Resource complexType),
url
Included in content model of elements (1):
documentation  (defined in Trade complexType)
Annotation
A human readable document related to this transaction, for example a confirmation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="attachment" type="Resource"/>
