element <quotedCurrencyPair> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
QuotedCurrencyPair
Content:
complex, 3 elements
Defined:
locally within FxFixing complexType in fpml-shared-5-13.xsd; see XML source

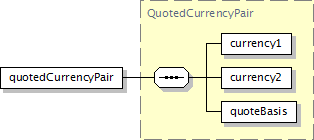

Component Diagram
XML Representation Summary
<quotedCurrencyPair>

Content:
currency1, currency2, quoteBasis
</quotedCurrencyPair>
Content model elements (3):
currency1 (defined in QuotedCurrencyPair complexType),
currency2 (defined in QuotedCurrencyPair complexType),
quoteBasis (defined in QuotedCurrencyPair complexType)
Included in content model of elements (9):
dealFxRate,
facilityFxRate (defined in LetterOfCredit complexType),
facilityFxRate (defined in LoanContract complexType),
facilityFxRate (in lcFxRevaluation),
facilityFxRate (in outstandingsPosition),
fixing (defined in FxCashSettlement complexType),
fixing (defined in FxCashSettlementSimple complexType),
lcFxRate (in lcAccrual),
lcFxRate (in lcFxRevaluation)
Annotation
Defines the two currencies for an FX trade and the quotation relationship between the two currencies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair"/>
