element <volatilityLeg> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
VolatilityLeg
Content:
complex, 1 attribute, 15 elements
Defined:
locally within VolatilitySwapTransactionSupplement complexType in fpml-volatility-swaps-5-13.xsd; see XML source

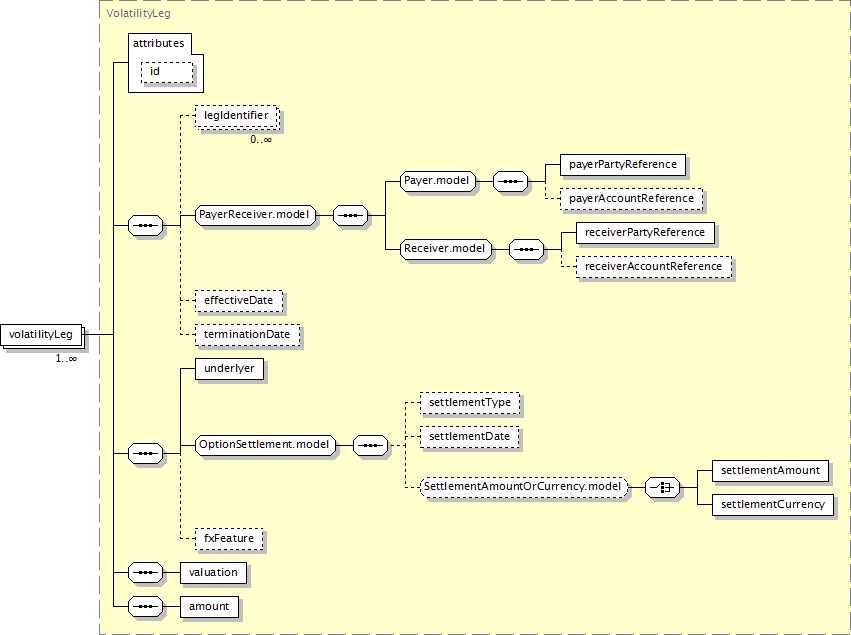

Component Diagram
XML Representation Summary
<volatilityLeg

id
 =
xsd:ID

>

Content:
legIdentifier*, payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, effectiveDate?, terminationDate?, underlyer, settlementType?, settlementDate?, (settlementAmount | settlementCurrency)?, fxFeature?, valuation, amount
</volatilityLeg>
Content model elements (15):
amount (defined in VolatilityLeg complexType),
effectiveDate (defined in DirectionalLeg complexType),
fxFeature (defined in DirectionalLegUnderlyer complexType),
legIdentifier (defined in DirectionalLeg complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
settlementAmount (defined in SettlementAmountOrCurrency.model group),
settlementCurrency (defined in SettlementAmountOrCurrency.model group),
settlementDate (defined in OptionSettlement.model group),
settlementType (defined in OptionSettlement.model group),
terminationDate (defined in DirectionalLeg complexType),
underlyer (defined in DirectionalLegUnderlyer complexType),
valuation
Included in content model of elements (1):
volatilitySwapTransactionSupplement
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="volatilityLeg" type="VolatilityLeg"/>
