element <payment> (local)

Namespace:	http://www.fpml.org/FpML-5/transparency
Type:	Payment
Content:	complex, 2 attributes, 3 elements
Defined:	locally within TradeAlterationPayment.model group in fpml-business-events-5-13.xsd; see XML source

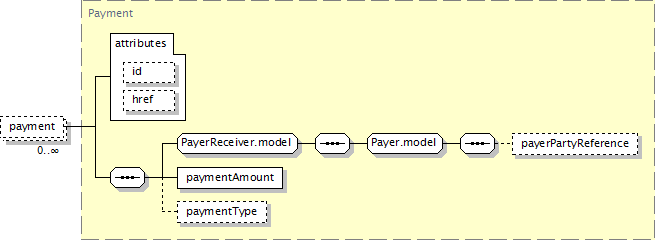

Component Diagram

XML Representation Summary

<payment

id	=	xsd:ID
href	=	xsd:IDREF

Content:

payerPartyReference?, paymentAmount, paymentType?

</payment>

Content model elements (3):

payerPartyReference (defined in Payer.model group),

paymentAmount (defined in Payment complexType),

paymentType (defined in Payment complexType)

Included in content model of elements (3):

amendment, increase, termination

Annotation

Describes a payment made in settlement of the change. Normally there will be a single fee, but there could be additional payments such as principal exchanges resulting from the termination.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="payment" type="Payment"/>
