element <additionalPayment> (local)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
Payment
Content:
complex, 2 attributes, 3 elements
Defined:
locally within Swap complexType in fpml-ird-5-13.xsd; see XML source

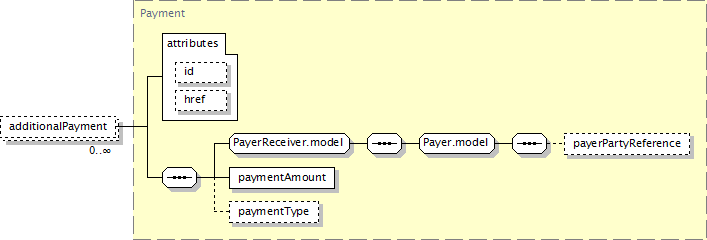

Component Diagram
XML Representation Summary
<additionalPayment

id
 =
xsd:ID
href
 =
xsd:IDREF

>

Content:
payerPartyReference?, paymentAmount, paymentType?
</additionalPayment>
Content model elements (3):
payerPartyReference (defined in Payer.model group),
paymentAmount (defined in Payment complexType),
paymentType (defined in Payment complexType)
Included in content model of elements (2):
swap,
swap (in swaption)
Annotation
Additional payments between the principal parties.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="Payment"/>
