complexType "ObservationPeriod"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 6 elements
Defined:
globally in fpml-accumulator-5-13.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

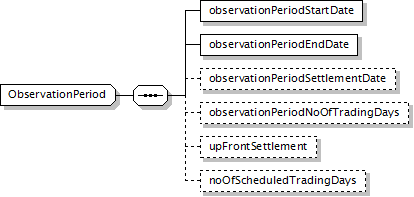

Component Diagram
XML Representation Summary
<...>

Content:
observationPeriodStartDate, observationPeriodEndDate, observationPeriodSettlementDate?, observationPeriodNoOfTradingDays?, upFrontSettlement?, noOfScheduledTradingDays?
</...>
Content Model Elements (6):
noOfScheduledTradingDays, observationPeriodEndDate, observationPeriodNoOfTradingDays, observationPeriodSettlementDate, observationPeriodStartDate, upFrontSettlement
All Direct / Indirect Based Elements (1):
observationPeriod
Known Usage Locations
Annotation
Period when accumulator will accumulate shares.
XML Source (w/o annotations (7); see within schema source)
<xsd:complexType name="ObservationPeriod">
<xsd:sequence>
<xsd:element name="observationPeriodStartDate" type="xsd:date"/>
<xsd:element name="observationPeriodEndDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="observationPeriodSettlementDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="observationPeriodNoOfTradingDays" type="xsd:positiveInteger"/>
<xsd:element minOccurs="0" name="upFrontSettlement" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="noOfScheduledTradingDays" type="xsd:positiveInteger"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/6)
noOfScheduledTradingDays
Type:
xsd:positiveInteger, predefined, simple content
Number of scheduled trading days in observation period
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="noOfScheduledTradingDays" type="xsd:positiveInteger"/>
observationPeriodEndDate
Type:
xsd:date, predefined, simple content
End date of observation period
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="observationPeriodEndDate" type="xsd:date"/>
observationPeriodNoOfTradingDays
Type:
xsd:positiveInteger, predefined, simple content
Number of trading days in observation period
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="observationPeriodNoOfTradingDays" type="xsd:positiveInteger"/>
observationPeriodSettlementDate
Type:
xsd:date, predefined, simple content
Settlement date for shares accumulated during the observation period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="observationPeriodSettlementDate" type="xsd:date"/>
observationPeriodStartDate
Type:
xsd:date, predefined, simple content
Start date of observation period
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="observationPeriodStartDate" type="xsd:date"/>
upFrontSettlement
Type:
xsd:boolean, predefined, simple content
Does the investor need to invest the maximum notional amount for this observation period upfront ? The alternative is to transact on a margin basis.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="upFrontSettlement" type="xsd:boolean"/>
