complexType "Commodity"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 18 elements
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
at 6 locations

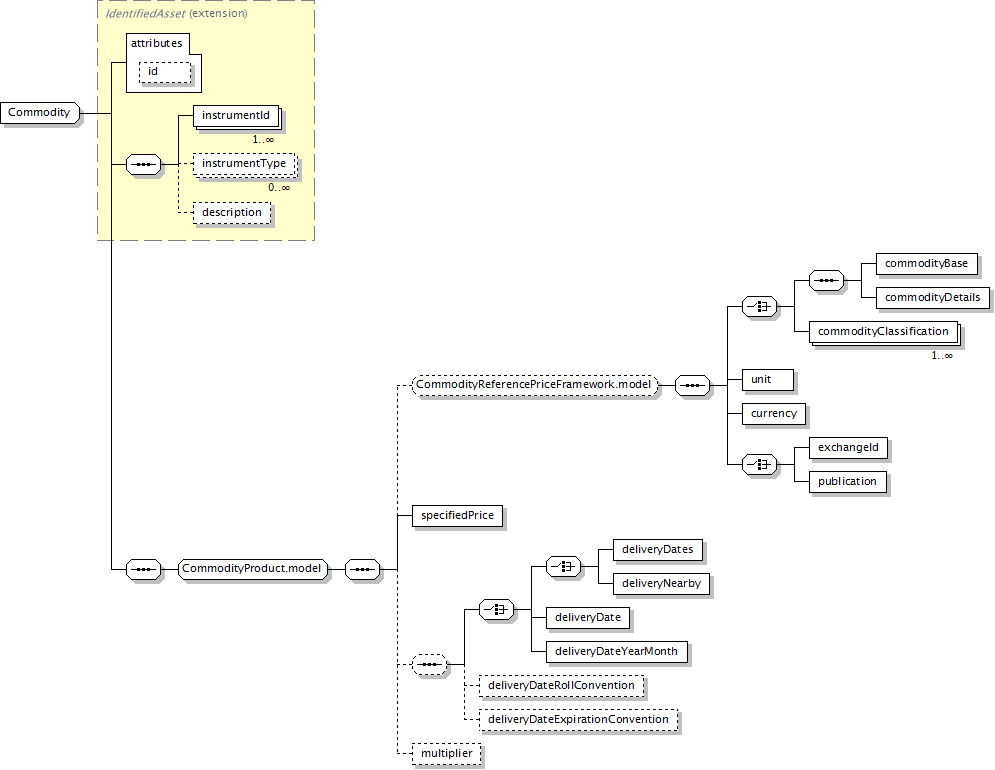

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, (((commodityBase, commodityDetails) | commodityClassification+), unit, currency, (exchangeId | publication))?, specifiedPrice, ((deliveryDates | deliveryNearby | deliveryDate | deliveryDateYearMonth), deliveryDateRollConvention?, deliveryDateExpirationConvention?)?, multiplier?
</...>
Content Model Elements (18):
commodityBase,
commodityClassification (defined in CommodityReferencePriceFramework.model group),
commodityDetails,
currency (defined in CommodityReferencePriceFramework.model group),
deliveryDate (defined in CommodityProduct.model group),
deliveryDateExpirationConvention,
deliveryDateRollConvention,
deliveryDateYearMonth,
deliveryDates,
deliveryNearby,
description (defined in IdentifiedAsset complexType),
exchangeId (defined in CommodityReferencePriceFramework.model group),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
multiplier (defined in CommodityProduct.model group),
publication,
specifiedPrice,
unit (defined in CommodityReferencePriceFramework.model group)
All Direct / Indirect Based Elements (6):
commodity,
commodity (defined in CommodityBasketUnderlyingBase complexType),
commodity (defined in CommodityUnderlyerChoice.model group),
commodity (in commodityDigitalOption),
commodity (in commodityOption),
commodity (in floatingLeg)
Known Usage Locations
Annotation
A type describing a commodity underlying asset.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAsset (extension)
      Commodity
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="Commodity">
<xsd:complexContent>
<xsd:extension base="IdentifiedAsset">
<xsd:sequence>
<xsd:group ref="CommodityProduct.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
