complexType "ExchangeTradedCalculatedPrice"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 11 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

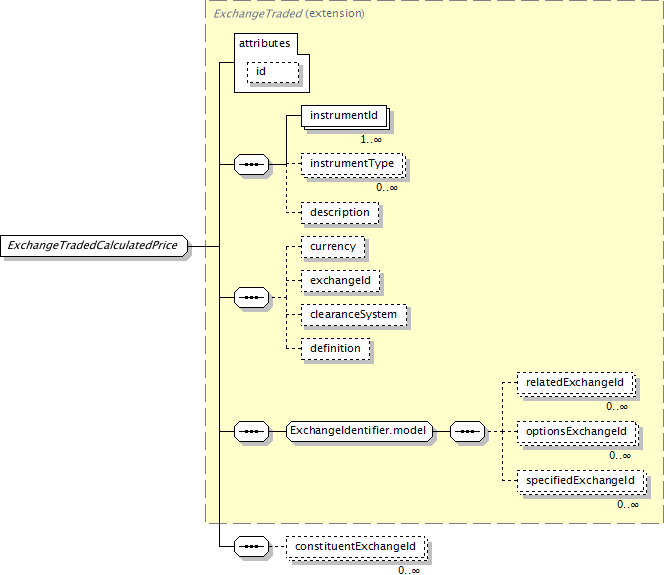

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, relatedExchangeId*, optionsExchangeId*, specifiedExchangeId*, constituentExchangeId*
</...>
Content Model Elements (11):
clearanceSystem,
constituentExchangeId,
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
optionsExchangeId,
relatedExchangeId,
specifiedExchangeId
Known Direct Subtypes (2):
ExchangeTradedFund, Index
All Direct / Indirect Based Elements (2):
exchangeTradedFund, index
Known Usage Locations
Annotation
Abstract base class for all exchange traded financial products with a price which is calculated from exchange traded constituents.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAsset (extension)
      UnderlyingAsset (extension)
          ExchangeTraded (extension)
              ExchangeTradedCalculatedPrice
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="ExchangeTradedCalculatedPrice">
<xsd:complexContent>
<xsd:extension base="ExchangeTraded">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="constituentExchangeId" type="ExchangeId"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
constituentExchangeId
Type:
ExchangeId, simple content
Identification of all the exchanges where constituents are traded. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="constituentExchangeId" type="ExchangeId"/>
