complexType "ExchangeTradedContract"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 13 elements
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 4 locations

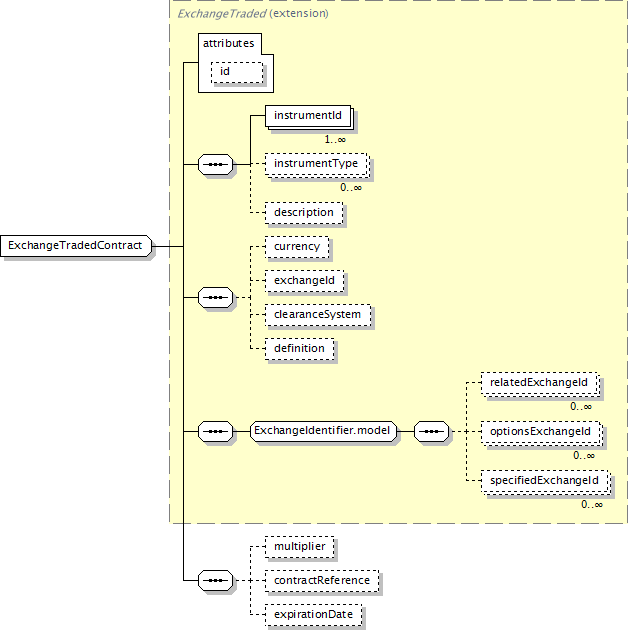

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, relatedExchangeId*, optionsExchangeId*, specifiedExchangeId*, multiplier?, contractReference?, expirationDate?
</...>
Content Model Elements (13):
clearanceSystem,
contractReference (defined in ExchangeTradedContract complexType),
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
expirationDate (defined in ExchangeTradedContract complexType),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
multiplier (defined in ExchangeTradedContract complexType),
optionsExchangeId,
relatedExchangeId,
specifiedExchangeId
Known Direct Subtypes (1):
ExchangeTradedOption
All Direct / Indirect Based Elements (4):
exchangeTradedContractNearest (in rateOfReturn),
exchangeTradedContractNearest (in variance),
option,
warrant
Known Usage Locations
Annotation
An exchange traded derivative contract.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAsset (extension)
      UnderlyingAsset (extension)
          ExchangeTraded (extension)
              ExchangeTradedContract
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="ExchangeTradedContract">
<xsd:complexContent>
<xsd:extension base="ExchangeTraded">
<xsd:sequence>
<xsd:element minOccurs="0" name="multiplier" type="PositiveDecimal"/>
<xsd:element minOccurs="0" name="contractReference" type="NonEmptyToken"/>
<xsd:element minOccurs="0" name="expirationDate" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/13)
contractReference
Type:
NonEmptyToken, simple content
Specifies the contract that can be referenced, besides the undelyer type.
Simple Content
xsd:token
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="contractReference" type="NonEmptyToken"/>
expirationDate
Type:
AdjustableOrRelativeDate, complex content
The date when the contract expires.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="expirationDate" type="AdjustableOrRelativeDate"/>
multiplier
Type:
PositiveDecimal, simple content
Specifies the contract multiplier that can be associated with the number of units.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="multiplier" type="PositiveDecimal"/>
