complexType "Loan"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 15 elements
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Includes:
definitions of 8 elements
Used:
at 1 location

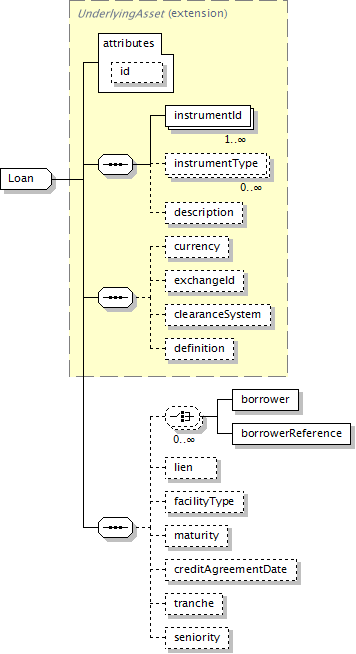

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, (borrower | borrowerReference)*, lien?, facilityType?, maturity?, creditAgreementDate?, tranche?, seniority?
</...>
Content Model Elements (15):
borrower,
borrowerReference,
clearanceSystem,
creditAgreementDate (in loan),
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
facilityType (in loan),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
lien (in loan),
maturity (in loan),
seniority (in loan),
tranche (in loan)
All Direct / Indirect Based Elements (1):
loan
Known Usage Locations
Annotation
A type describing a loan underlying asset.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAsset (extension)
      UnderlyingAsset (extension)
          Loan
XML Source (w/o annotations (8); see within schema source)
<xsd:complexType name="Loan">
<xsd:complexContent>
<xsd:extension base="UnderlyingAsset">
<xsd:sequence>
<xsd:choice maxOccurs="unbounded" minOccurs="0">
<xsd:element name="borrower" type="LegalEntity"/>
<xsd:element name="borrowerReference" type="LegalEntityReference"/>
</xsd:choice>
<xsd:element minOccurs="0" name="lien" type="Lien"/>
<xsd:element minOccurs="0" name="facilityType" type="FacilityType"/>
<xsd:element minOccurs="0" name="maturity" type="xsd:date"/>
<xsd:element minOccurs="0" name="creditAgreementDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="tranche" type="UnderlyingAssetTranche"/>
<xsd:element minOccurs="0" name="seniority" type="CreditSeniority"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 8/15)
borrower
Type:
LegalEntity, complex content
XML Source (see within schema source)
<xsd:element name="borrower" type="LegalEntity"/>
borrowerReference
Type:
LegalEntityReference, empty content
XML Source (see within schema source)
<xsd:element name="borrowerReference" type="LegalEntityReference"/>
creditAgreementDate
Type:
xsd:date, predefined, simple content
The credit agreement date is the closing date (the date where the agreement has been signed) for the loans in the credit agreement. Funding of the facilities occurs on (or sometimes a little after) the Credit Agreement date. This underlyer attribute is used to help identify which of the company's outstanding loans are being referenced by knowing to which credit agreement it belongs. ISDA Standards Terms Supplement term: Date of Original Credit Agreement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="creditAgreementDate" type="xsd:date"/>
facilityType
Type:
FacilityType, simple content
The type of loan facility (letter of credit, revolving, ...).
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="facilityType" type="FacilityType"/>
lien
Type:
Lien, simple content
Specifies the seniority level of the lien.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="lien" type="Lien"/>
maturity
Type:
xsd:date, predefined, simple content
The date when the principal amount of the loan becomes due and payable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="maturity" type="xsd:date"/>
seniority
Type:
CreditSeniority, simple content
The seniority. E.g. senior, senior secured etc.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="seniority" type="CreditSeniority"/>
tranche
Type:
UnderlyingAssetTranche, simple content
The loan tranche that is subject to the derivative transaction. It will typically be referenced as the Bloomberg tranche number. ISDA Standards Terms Supplement term: Bloomberg Tranche Number.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="tranche" type="UnderlyingAssetTranche"/>
