complexType "QuotationCharacteristics"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 14 elements
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
at 3 locations

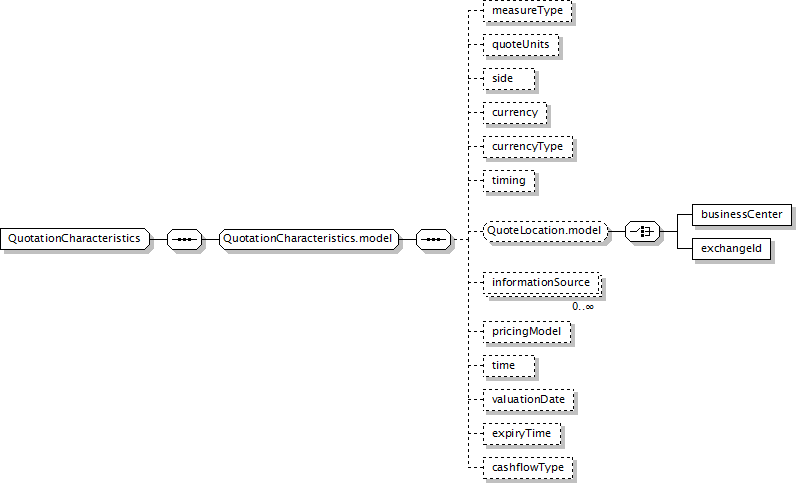

Component Diagram
XML Representation Summary
<...>

Content:
measureType?, quoteUnits?, side?, currency?, currencyType?, timing?, (businessCenter | exchangeId)?, informationSource*, pricingModel?, time?, valuationDate?, expiryTime?, cashflowType?
</...>
Content Model Elements (14):
businessCenter (defined in QuoteLocation.model group),
cashflowType (defined in QuotationCharacteristics.model group),
currency (defined in QuotationCharacteristics.model group),
currencyType,
exchangeId (defined in QuoteLocation.model group),
expiryTime (defined in QuotationCharacteristics.model group),
informationSource (defined in QuotationCharacteristics.model group),
measureType,
pricingModel,
quoteUnits (defined in QuotationCharacteristics.model group),
side (defined in QuotationCharacteristics.model group),
time (defined in QuotationCharacteristics.model group),
timing,
valuationDate (defined in QuotationCharacteristics.model group)
All Direct / Indirect Based Elements (3):
quotationCharacteristics (defined in Price complexType),
quotationCharacteristics (in valuationSet),
sensitivityCharacteristics
Known Usage Locations
Annotation
A type representing a set of characteristics that describe a quotation.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="QuotationCharacteristics">
<xsd:sequence>
<xsd:group ref="QuotationCharacteristics.model"/>
</xsd:sequence>
</xsd:complexType>
