complexType "EventProposedMatch"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 20 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

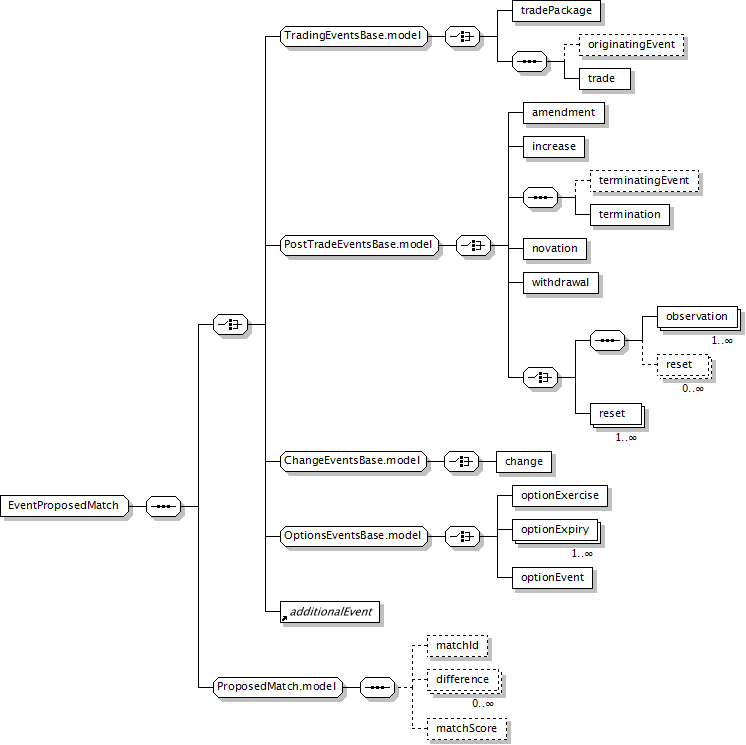

Component Diagram
XML Representation Summary
<...>

Content:
(tradePackage | (originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | withdrawal | (observation+, reset*) | reset+ | change | optionExercise | optionExpiry+ | optionEvent | additionalEvent), matchId?, difference*, matchScore?
</...>
Content Model Elements (20):
additionalEvent,
amendment (defined in PostTradeEventsBase.model group),
change (defined in ChangeEventsBase.model group),
difference,
increase,
matchId,
matchScore,
novation,
observation (defined in PostTradeEventsBase.model group),
optionEvent,
optionExercise (defined in OptionsEventsBase.model group),
optionExpiry (defined in OptionsEventsBase.model group),
originatingEvent (defined in TradingEventsBase.model group),
reset (defined in PostTradeEventsBase.model group),
reset (defined in PostTradeEventsBase.model group),
terminatingEvent (defined in PostTradeEventsBase.model group),
termination (defined in PostTradeEventsBase.model group),
trade (defined in TradingEventsBase.model group),
tradePackage (defined in TradingEventsBase.model group),
withdrawal
All Direct / Indirect Based Elements (1):
proposedMatch
Known Usage Locations
Annotation
A structure that describes a proposed match between trades or post-trade event reports.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="EventProposedMatch">
<xsd:sequence>
<xsd:choice>
<xsd:group ref="TradingEventsBase.model"/>
<xsd:group ref="PostTradeEventsBase.model"/>
<xsd:group ref="ChangeEventsBase.model"/>
<xsd:group ref="OptionsEventsBase.model"/>
<xsd:element ref="additionalEvent"/>
</xsd:choice>
<xsd:group ref="ProposedMatch.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/20)
additionalEvent
Type:
AdditionalEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
XML Source (see within schema source)
<xsd:element ref="additionalEvent"/>
