element <underlyer> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TradeUnderlyer2
Content:
complex, 1 attribute, 21 elements
Defined:
locally within ObservationSource complexType in fpml-business-events-5-13.xsd; see XML source

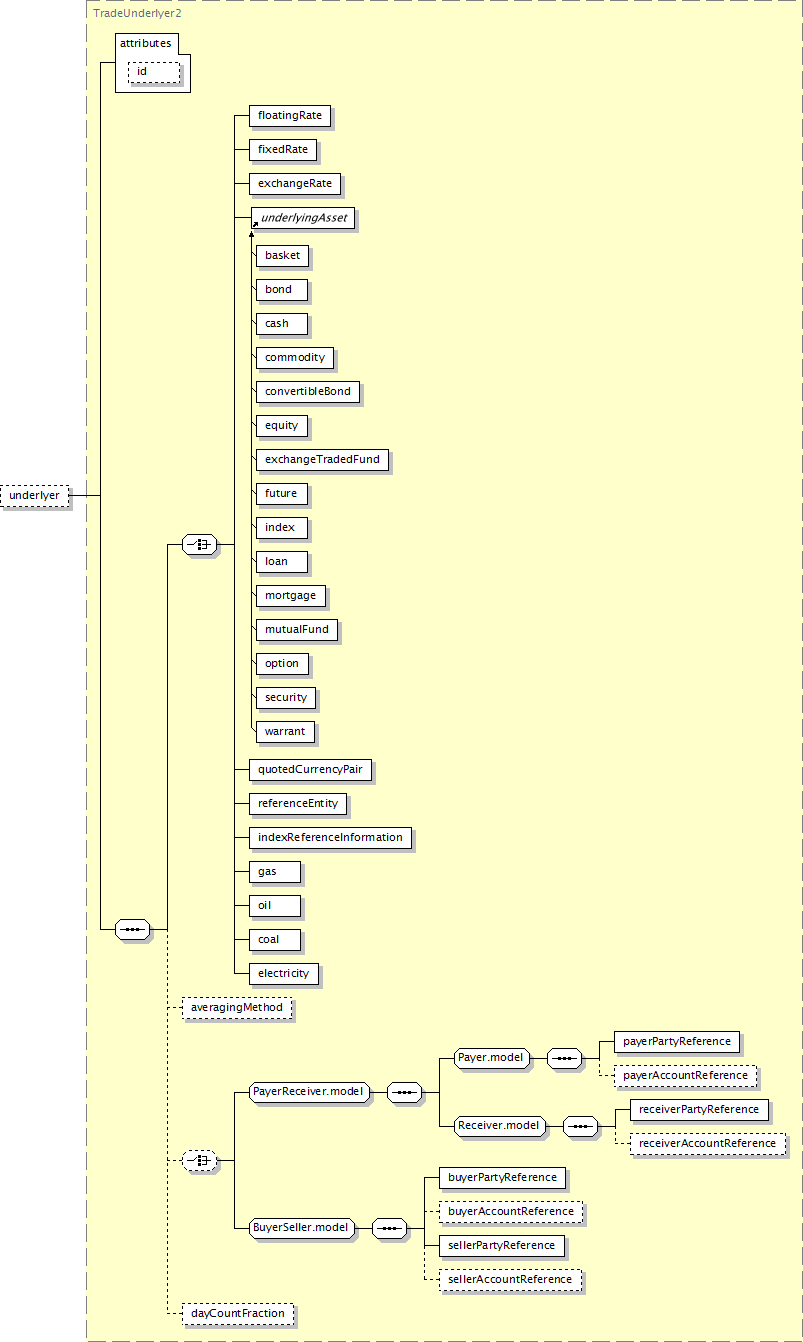

Component Diagram
XML Representation Summary
<underlyer

id
 =
xsd:ID

>

Content:
(floatingRate | fixedRate | exchangeRate | underlyingAsset | quotedCurrencyPair | referenceEntity | indexReferenceInformation | gas | oil | coal | electricity), averagingMethod?, ((payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?) | (buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?))?, dayCountFraction?
</underlyer>
Content model elements (21):
averagingMethod (defined in TradeUnderlyer2 complexType),
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
coal (defined in TradeUnderlyer2 complexType),
dayCountFraction (defined in TradeUnderlyer2 complexType),
electricity (defined in TradeUnderlyer2 complexType),
exchangeRate (defined in TradeUnderlyer2 complexType),
fixedRate (defined in TradeUnderlyer2 complexType),
floatingRate (defined in TradeUnderlyer2 complexType),
gas (defined in TradeUnderlyer2 complexType),
indexReferenceInformation (defined in TradeUnderlyer2 complexType),
oil (defined in TradeUnderlyer2 complexType),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
quotedCurrencyPair (defined in TradeUnderlyer2 complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
referenceEntity (defined in TradeUnderlyer2 complexType),
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
underlyingAsset
Included in content model of elements (1):
source  (in observation defined in PostTradeEventsBase.model group)
May contain elements by substitutions (15):
basket, bond, cash, commodity, convertibleBond, equity, exchangeTradedFund, future, index, loan, mortgage, mutualFund, option, security, warrant
XML Source (see within schema source)
<xsd:element minOccurs="0" name="underlyer" type="TradeUnderlyer2"/>
