element <exchangeRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
GenericProductExchangeRate
Content:
complex, 6 elements
Defined:
locally within TradeUnderlyer2 complexType in fpml-generic-5-13.xsd; see XML source

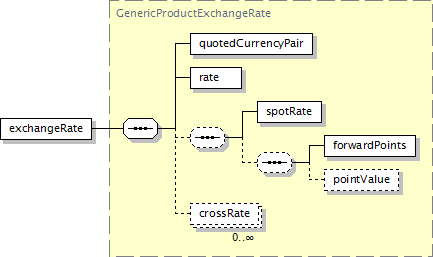

Component Diagram
XML Representation Summary
<exchangeRate>

Content:
quotedCurrencyPair, rate, (spotRate, (forwardPoints, pointValue?)?)?, crossRate*
</exchangeRate>
Content model elements (6):
crossRate (in exchangeRate defined in TradeUnderlyer2 complexType),
forwardPoints (in exchangeRate defined in TradeUnderlyer2 complexType),
pointValue (in exchangeRate defined in TradeUnderlyer2 complexType),
quotedCurrencyPair (in exchangeRate defined in TradeUnderlyer2 complexType),
rate (in exchangeRate defined in TradeUnderlyer2 complexType),
spotRate (in exchangeRate defined in TradeUnderlyer2 complexType)
Included in content model of elements (2):
underlyer (in genericProduct),
underlyer (in source in observation defined in PostTradeEventsBase.model group)
Annotation
The rate of exchange between two currencies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangeRate" type="GenericProductExchangeRate"/>
