element <noTouch> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
NoTouchRateObservation
Content:
complex, 12 elements
Defined:
locally within OptionEvent complexType in fpml-business-events-5-13.xsd; see XML source

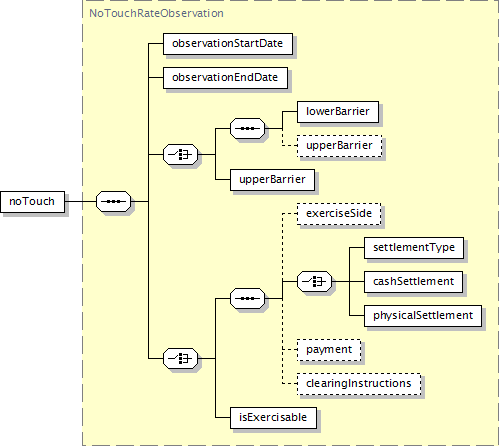

Component Diagram
XML Representation Summary
<noTouch>

Content:
observationStartDate, observationEndDate, ((lowerBarrier, upperBarrier?) | upperBarrier), ((exerciseSide?, (settlementType | cashSettlement | physicalSettlement), payment?, clearingInstructions?) | isExercisable)
</noTouch>
Content model elements (12):
cashSettlement (in noTouch),
clearingInstructions (in noTouch),
exerciseSide (in noTouch),
isExercisable (in noTouch),
lowerBarrier (in noTouch),
observationEndDate (in noTouch),
observationStartDate (in noTouch),
payment (in noTouch),
physicalSettlement (in noTouch),
settlementType (in noTouch),
upperBarrier (in noTouch),
upperBarrier (in noTouch)
Included in content model of elements (1):
optionEvent
Annotation
A structure describing the outcome of an option having no touch events
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="noTouch" type="NoTouchRateObservation"/>
