complexType "OptionExerciseAmounts"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 12 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definitions of 12 elements
Used:
at 1 location

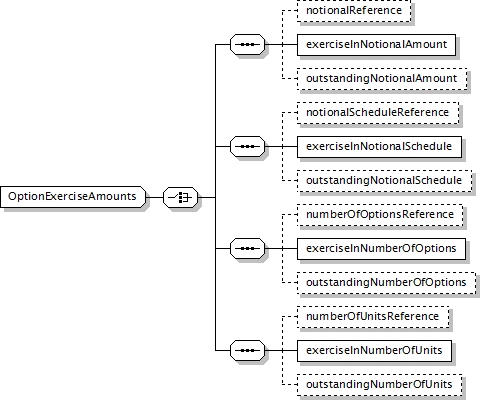

Component Diagram
XML Representation Summary
<...>

Content:
(notionalReference?, exerciseInNotionalAmount, outstandingNotionalAmount?) | (notionalScheduleReference?, exerciseInNotionalSchedule, outstandingNotionalSchedule?) | (numberOfOptionsReference?, exerciseInNumberOfOptions, outstandingNumberOfOptions?) | (numberOfUnitsReference?, exerciseInNumberOfUnits, outstandingNumberOfUnits?)
</...>
Content Model Elements (12):
exerciseInNotionalAmount (in specifiedExercise),
exerciseInNotionalSchedule,
exerciseInNumberOfOptions (in specifiedExercise),
exerciseInNumberOfUnits (in specifiedExercise),
notionalReference (in specifiedExercise),
notionalScheduleReference (in specifiedExercise),
numberOfOptionsReference (in specifiedExercise),
numberOfUnitsReference (in specifiedExercise),
outstandingNotionalAmount (in specifiedExercise),
outstandingNotionalSchedule (in specifiedExercise),
outstandingNumberOfOptions (in specifiedExercise),
outstandingNumberOfUnits (in specifiedExercise)
All Direct / Indirect Based Elements (1):
specifiedExercise
Known Usage Locations
XML Source (w/o annotations (8); see within schema source)
<xsd:complexType name="OptionExerciseAmounts">
<xsd:choice>
<xsd:sequence>
<xsd:element minOccurs="0" name="notionalReference" type="NotionalReference"/>
<xsd:element name="exerciseInNotionalAmount" type="Money"/>
<xsd:element minOccurs="0" name="outstandingNotionalAmount" type="Money"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element minOccurs="0" name="notionalScheduleReference" type="NotionalReference"/>
<xsd:element minOccurs="0" name="outstandingNotionalSchedule" type="NonNegativeAmountSchedule"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element minOccurs="0" name="numberOfOptionsReference" type="NumberOfOptionsReference"/>
<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="outstandingNumberOfOptions" type="xsd:decimal"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element minOccurs="0" name="numberOfUnitsReference" type="NumberOfUnitsReference"/>
<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="outstandingNumberOfUnits" type="xsd:decimal"/>
</xsd:sequence>
</xsd:choice>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 12/12)
exerciseInNotionalAmount
Type:
Money, complex content
Specifies the fixed amount by which the option should be exercised expressed as notional amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNotionalAmount" type="Money"/>
exerciseInNotionalSchedule
Type:
NonNegativeAmountSchedule, complex content
Specifies the amount by which the option should be exercised expressed as notional schedule.
XML Source (w/o annotations (1); see within schema source)
exerciseInNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the option should be exercised expressed as number of options.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>
exerciseInNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the option should be exercised express as number of units.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>
notionalReference
Type:
NotionalReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="notionalReference" type="NotionalReference"/>
notionalScheduleReference
Type:
NotionalReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="notionalScheduleReference" type="NotionalReference"/>
numberOfOptionsReference
Type:
NumberOfOptionsReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="numberOfOptionsReference" type="NumberOfOptionsReference"/>
numberOfUnitsReference
Type:
NumberOfUnitsReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="numberOfUnitsReference" type="NumberOfUnitsReference"/>
outstandingNotionalAmount
Type:
Money, complex content
Specifies the Notional amount after the Change
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="outstandingNotionalAmount" type="Money"/>
outstandingNotionalSchedule
Type:
NonNegativeAmountSchedule, complex content
Specifies the Notional schedule after the Change
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="outstandingNotionalSchedule" type="NonNegativeAmountSchedule"/>
outstandingNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Options after the Change.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="outstandingNumberOfOptions" type="xsd:decimal"/>
outstandingNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Units
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="outstandingNumberOfUnits" type="xsd:decimal"/>
