complexType "TradeChangeBase"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 8 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

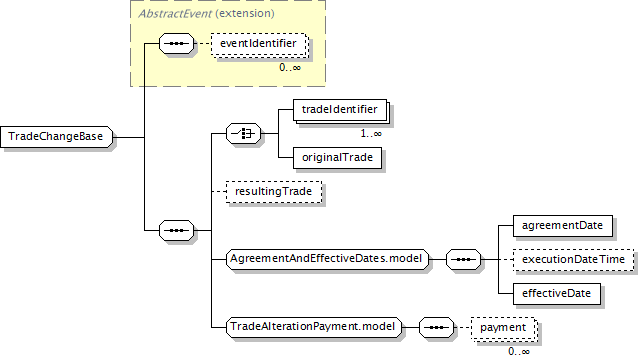

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier*, (tradeIdentifier+ | originalTrade), resultingTrade?, agreementDate, executionDateTime?, effectiveDate, payment*
</...>
Content Model Elements (8):
agreementDate,
effectiveDate (defined in AgreementAndEffectiveDates.model group),
eventIdentifier (defined in AbstractEvent complexType),
executionDateTime (defined in AgreementAndEffectiveDates.model group),
originalTrade (defined in TradeChangeBase complexType),
payment (defined in TradeAlterationPayment.model group),
resultingTrade (defined in TradeChangeBase complexType),
tradeIdentifier (defined in TradeChangeBase complexType)
Known Direct Subtypes (1):
TradeNotionalChange
All Direct / Indirect Based Elements (3):
increase,
termination (defined in PostTradeEventsBase.model group),
termination (in clearingConfirmed)
Known Usage Locations
Annotation
A structure describing a trade change.
Type Definition Detail
Type Derivation Tree
AbstractEvent (extension)
  TradeChangeBase
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="TradeChangeBase">
<xsd:complexContent>
<xsd:extension base="AbstractEvent">
<xsd:sequence>
<xsd:choice>
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
<xsd:element name="originalTrade" type="Trade"/>
</xsd:choice>
<xsd:element minOccurs="0" name="resultingTrade" type="Trade"/>
<xsd:group ref="TradeAlterationPayment.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/8)
originalTrade
Type:
Trade, complex content
XML Source (see within schema source)
<xsd:element name="originalTrade" type="Trade"/>
resultingTrade
Type:
Trade, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="resultingTrade" type="Trade"/>
tradeIdentifier
Type:
PartyTradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
