complexType "CoalStandardQualitySchedule"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

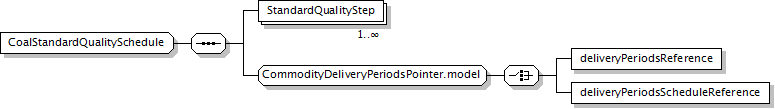

Component Diagram
XML Representation Summary
<...>

Content:
StandardQualityStep+, (deliveryPeriodsReference | deliveryPeriodsScheduleReference)
</...>
Content Model Elements (3):
StandardQualityStep, deliveryPeriodsReference, deliveryPeriodsScheduleReference
All Direct / Indirect Based Elements (1):
standardQualitySchedule
Known Usage Locations
Annotation
The quality attributes of the coal to be delivered, specified on a periodic basis.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="CoalStandardQualitySchedule">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="StandardQualityStep" type="CoalStandardQuality"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
StandardQualityStep
Type:
CoalStandardQuality, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="StandardQualityStep" type="CoalStandardQuality"/>
