complexType "CommodityEuropeanExercise"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 3 locations

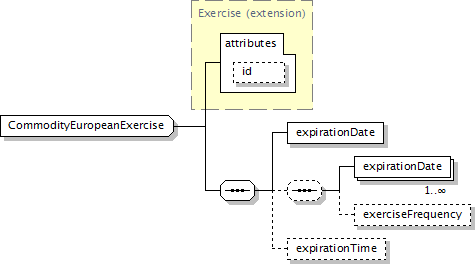

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
expirationDate, (expirationDate+, exerciseFrequency?)?, expirationTime?
</...>
Content Model Elements (4):
exerciseFrequency (defined in CommodityEuropeanExercise complexType),
expirationDate (defined in CommodityEuropeanExercise complexType),
expirationDate (defined in CommodityEuropeanExercise complexType),
expirationTime (defined in CommodityEuropeanExercise complexType)
All Direct / Indirect Based Elements (3):
europeanExercise (defined in CommodityExercise complexType),
europeanExercise (in exercise in commodityBasketOption),
europeanExercise (in exercise in commodityDigitalOption)
Known Usage Locations
Annotation
A type for defining exercise procedures associated with a European style exercise of a commodity option.
Type Definition Detail
Type Derivation Tree
Exercise (extension)
  CommodityEuropeanExercise
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="CommodityEuropeanExercise">
<xsd:complexContent>
<xsd:extension base="Exercise">
<xsd:sequence>
<xsd:element name="expirationDate" type="AdjustableOrRelativeDate"/>
<xsd:sequence minOccurs="0">
<xsd:element maxOccurs="unbounded" name="expirationDate" type="AdjustableOrRelativeDate"/>
<xsd:element minOccurs="0" name="exerciseFrequency" type="Frequency"/>
</xsd:sequence>
<xsd:element minOccurs="0" name="expirationTime" type="BusinessCenterTime"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
exerciseFrequency
Type:
Frequency, complex content
The exercise frequency for the strip.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exerciseFrequency" type="Frequency"/>
expirationDate
Type:
AdjustableOrRelativeDate, complex content
The last day within an exercise period for an American style option. For a European style option it is the only day within the exercise period. For an averaging option this is equivalent to the Termination Date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expirationDate" type="AdjustableOrRelativeDate"/>
expirationDate
Type:
AdjustableOrRelativeDate, complex content
The last day within an exercise period for an American style option. For a European style option it is the only day within the exercise period. For an averaging option this is equivalent to the Termination Date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="expirationDate" type="AdjustableOrRelativeDate"/>
expirationTime
Type:
BusinessCenterTime, complex content
The specific time of day on which the option expires.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="expirationTime" type="BusinessCenterTime"/>
