complexType "CommodityForward"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 13 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

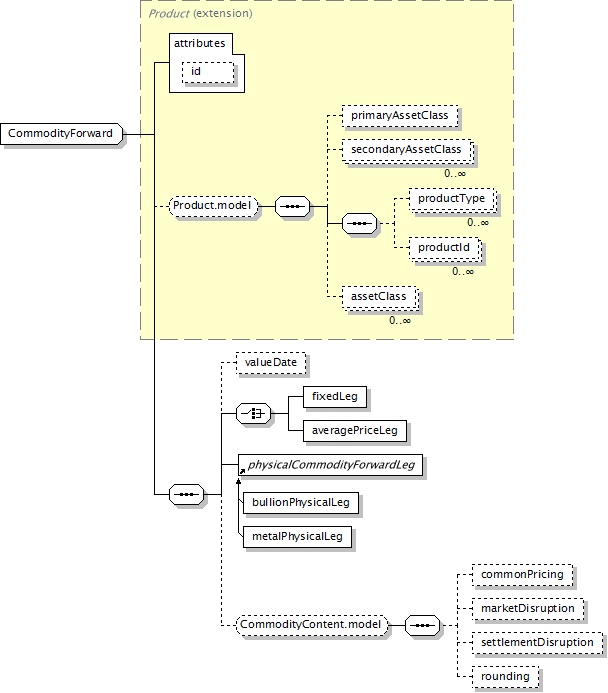

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, valueDate?, (fixedLeg | averagePriceLeg), physicalCommodityForwardLeg, (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?
</...>
Content Model Elements (13):
assetClass,
averagePriceLeg,
commonPricing,
fixedLeg (in commodityForward),
marketDisruption (defined in CommodityContent.model group),
physicalCommodityForwardLeg,
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
rounding (defined in CommodityContent.model group),
secondaryAssetClass,
settlementDisruption,
valueDate (in commodityForward)
All Direct / Indirect Based Elements (1):
commodityForward
Known Usage Locations
Annotation
Commodity Forward
Type Definition Detail
Type Derivation Tree
Product (extension)
  CommodityForward
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="CommodityForward">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:element minOccurs="0" name="valueDate" type="AdjustableOrRelativeDate"/>
<xsd:choice>
<xsd:element name="fixedLeg" type="NonPeriodicFixedPriceLeg"/>
<xsd:element name="averagePriceLeg" type="AveragePriceLeg"/>
</xsd:choice>
<xsd:element ref="physicalCommodityForwardLeg"/>
<xsd:group minOccurs="0" ref="CommodityContent.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/13)
averagePriceLeg
Type:
AveragePriceLeg, complex content
Specifies the calculated floating price leg of a Commodity Forward Transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="averagePriceLeg" type="AveragePriceLeg"/>
fixedLeg
Type:
NonPeriodicFixedPriceLeg, complex content
The fixed leg of a Commodity Forward Transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixedLeg" type="NonPeriodicFixedPriceLeg"/>
physicalCommodityForwardLeg
Type:
PhysicalLegBase, complex content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 2 elements
XML Source (see within schema source)
<xsd:element ref="physicalCommodityForwardLeg"/>
valueDate
Type:
AdjustableOrRelativeDate, complex content
Specifies the value date of the Commodity Forward Transaction. This is the day on which both the cash and the physical commodity settle.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="valueDate" type="AdjustableOrRelativeDate"/>
