complexType "CommodityPhysicalEuropeanExercise"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

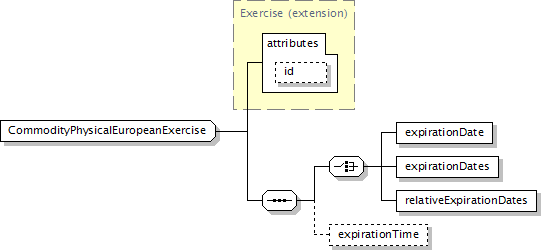

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
(expirationDate | expirationDates | relativeExpirationDates), expirationTime?
</...>
Content Model Elements (4):
expirationDate (in europeanExercise defined in CommodityPhysicalExercise complexType),
expirationDates (in europeanExercise defined in CommodityPhysicalExercise complexType),
expirationTime (in europeanExercise defined in CommodityPhysicalExercise complexType),
relativeExpirationDates (in europeanExercise defined in CommodityPhysicalExercise complexType)
All Direct / Indirect Based Elements (1):
europeanExercise  (defined in CommodityPhysicalExercise complexType)
Known Usage Locations
Annotation
The parameters for defining the expiration date(s) and time(s) for a European style option.
Type Definition Detail
Type Derivation Tree
Exercise (extension)
  CommodityPhysicalEuropeanExercise
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="CommodityPhysicalEuropeanExercise">
<xsd:complexContent>
<xsd:extension base="Exercise">
<xsd:sequence>
<xsd:choice>
<xsd:element name="expirationDate" type="AdjustableOrRelativeDate"/>
</xsd:choice>
<xsd:element minOccurs="0" name="expirationTime" type="PrevailingTime"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
expirationDate
Type:
AdjustableOrRelativeDate, complex content
The Expiration Date of a single expiry European-style option or the first Expiration Date of a multiple expiry or daily expiring option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expirationDate" type="AdjustableOrRelativeDate"/>
expirationDates
Type:
AdjustableRelativeOrPeriodicDates2, complex content
The Expiration Date(s) of a European-style option.
XML Source (w/o annotations (1); see within schema source)
expirationTime
Type:
PrevailingTime, complex content
The specific time of day at which the option expires.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="expirationTime" type="PrevailingTime"/>
relativeExpirationDates
Type:
CommodityRelativeExpirationDates, complex content
The Expiration Date(s) of a European-style option where it is relative to the occurrence of an external event.
XML Source (w/o annotations (1); see within schema source)
