complexType "CommodityPhysicalQuantity"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Used:
at 2 locations

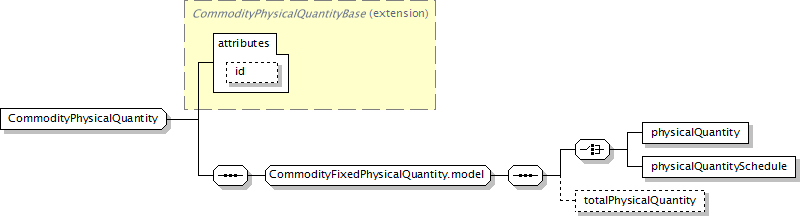

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
(physicalQuantity | physicalQuantitySchedule), totalPhysicalQuantity?
</...>
Content Model Elements (3):
physicalQuantity (defined in CommodityFixedPhysicalQuantity.model group),
physicalQuantitySchedule (defined in CommodityFixedPhysicalQuantity.model group),
totalPhysicalQuantity (defined in CommodityFixedPhysicalQuantity.model group)
All Direct / Indirect Based Elements (2):
deliveryQuantity (in coalPhysicalLeg),
deliveryQuantity (in oilPhysicalLeg)
Known Usage Locations
Annotation
A type defining the physical quantity of the commodity to be delivered.
Type Definition Detail
Type Derivation Tree
CommodityPhysicalQuantityBase (extension)
  CommodityPhysicalQuantity
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="CommodityPhysicalQuantity">
<xsd:complexContent>
<xsd:extension base="CommodityPhysicalQuantityBase">
<xsd:sequence>
<xsd:group ref="CommodityFixedPhysicalQuantity.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
