complexType "CommodityStrikeSchedule"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

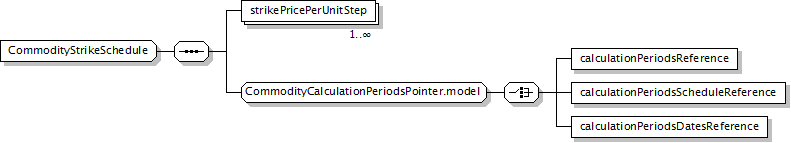

Component Diagram
XML Representation Summary
<...>

Content:
strikePricePerUnitStep+, (calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference)
</...>
Content Model Elements (4):
calculationPeriodsDatesReference, calculationPeriodsReference, calculationPeriodsScheduleReference, strikePricePerUnitStep
All Direct / Indirect Based Elements (1):
strikePricePerUnitSchedule
Known Usage Locations
Annotation
The Strike Price per Unit per Calculation Period. There must be a Strike Price per Unit step specified for each Calculation Period, regardless of whether the Strike changes or remains the same between periods.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="CommodityStrikeSchedule">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="strikePricePerUnitStep" type="NonNegativeMoney"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
strikePricePerUnitStep
Type:
NonNegativeMoney, complex content
The strike price per unit per Calculation Period. There must be a strike price per unit specified for each Calculation Period, regardless of whether the price changes or remains the same between periods.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="strikePricePerUnitStep" type="NonNegativeMoney"/>
