complexType "CommoditySwap"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 14 elements
Defined:	globally in fpml-com-5-13.xsd; see XML source
Used:	at 1 location

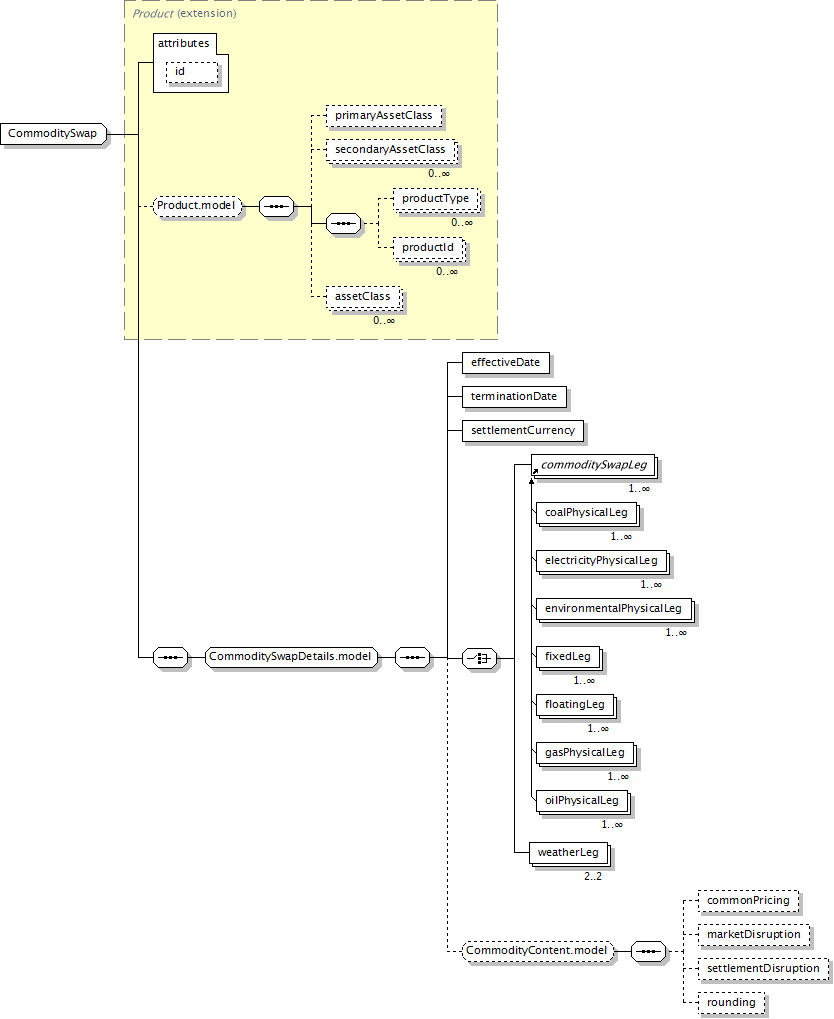

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, effectiveDate, terminationDate, settlementCurrency, (commoditySwapLeg+ | weatherLeg[2..2]), (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?

</...>

Content Model Elements (14):

assetClass,

commoditySwapLeg,

commonPricing,

effectiveDate (defined in CommoditySwapDetails.model group),

marketDisruption (defined in CommodityContent.model group),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

rounding (defined in CommodityContent.model group),

secondaryAssetClass,

settlementCurrency (defined in CommoditySwapDetails.model group),

settlementDisruption,

terminationDate (defined in CommoditySwapDetails.model group),

weatherLeg

All Direct / Indirect Based Elements (1):

commoditySwap

Known Usage Locations

As direct type of elements (1):

commoditySwap

Annotation

The commodity swap product model is designed to support fixed-float swaps, float-float swaps, fixed vs. physical swaps, float vs. physical swaps as well as, weather specific swaps. Its design is fully compatible with other FpML products and the product reuses standard common types.

Type Definition Detail

Type Derivation Tree

Product (extension)

CommoditySwap

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="CommoditySwap">

<xsd:complexContent>

<xsd:extension base="Product">

<xsd:sequence>

<xsd:group ref="CommoditySwapDetails.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
