element <settlementPeriods> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
SettlementPeriods
Content:
complex, 1 attribute, 7 elements
Defined:
locally within ElectricityPhysicalLeg complexType in fpml-com-5-13.xsd; see XML source

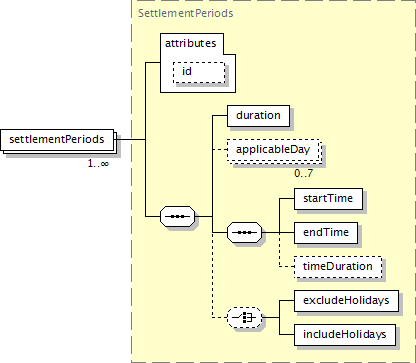

Component Diagram
XML Representation Summary
<settlementPeriods

id
 =
xsd:ID

>

Content:
duration, applicableDay[0..7], startTime, endTime, timeDuration?, (excludeHolidays | includeHolidays)?
</settlementPeriods>
Content model elements (7):
applicableDay (defined in SettlementPeriods complexType),
duration (defined in SettlementPeriods complexType),
endTime (defined in SettlementPeriods complexType),
excludeHolidays,
includeHolidays,
startTime (defined in SettlementPeriods complexType),
timeDuration
Included in content model of elements (1):
electricityPhysicalLeg
Annotation
The specification of the Settlement Periods in which the electricity will be delivered. The Settlement Periods will apply from and including the Effective Date up to and including the Termination Date. If more than one settlementPeriods element is present this indicates multiple ranges of Settlement Periods apply to the entire trade - for example off-peak weekdays and all day weekends. Settlement Period ranges should not overlap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="settlementPeriods" type="SettlementPeriods"/>
