complexType "SettlementPeriods"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 7 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 7 elements
Used:
at 3 locations

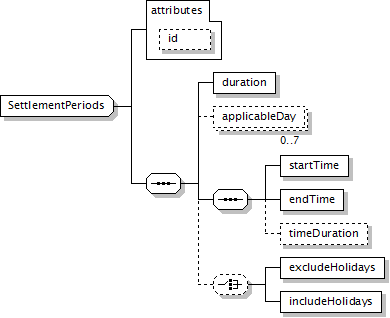

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
duration, applicableDay[0..7], startTime, endTime, timeDuration?, (excludeHolidays | includeHolidays)?
</...>
Content Model Elements (7):
applicableDay (defined in SettlementPeriods complexType),
duration (defined in SettlementPeriods complexType),
endTime (defined in SettlementPeriods complexType),
excludeHolidays,
includeHolidays,
startTime (defined in SettlementPeriods complexType),
timeDuration
All Direct / Indirect Based Elements (3):
settlementPeriods (defined in CommodityPricingDates complexType),
settlementPeriods (defined in CommodityValuationDates complexType),
settlementPeriods (in electricityPhysicalLeg)
Known Usage Locations
Annotation
Specifies a set of Settlement Periods associated with an Electricity Transaction for delivery on an Applicable Day or for a series of Applicable Days.
XML Source (w/o annotations (8); see within schema source)
<xsd:complexType name="SettlementPeriods">
<xsd:sequence>
<xsd:element name="duration" type="SettlementPeriodDurationEnum"/>
<xsd:element maxOccurs="7" minOccurs="0" name="applicableDay" type="DayOfWeekExtEnum"/>
<xsd:sequence>
<xsd:element name="startTime" type="OffsetPrevailingTime"/>
<xsd:element name="endTime" type="OffsetPrevailingTime"/>
<xsd:element minOccurs="0" name="timeDuration" type="xsd:time"/>
</xsd:sequence>
<xsd:choice minOccurs="0">
<xsd:element name="excludeHolidays" type="CommodityBusinessCalendar"/>
<xsd:element name="includeHolidays" type="CommodityBusinessCalendar"/>
</xsd:choice>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 7/7)
applicableDay
Type:
DayOfWeekExtEnum, simple content
Specifies the Applicable Day with respect to a range of Settlement Periods. This element can only be omitted if includesHolidays is present, in which case this range of Settlement Periods will apply to days that are holidays only.
Simple Content
("MON" | "TUE" | "WED" | "THU" | "FRI" | "SAT" | "SUN") | ("WD" | "WN")
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="7" minOccurs="0" name="applicableDay" type="DayOfWeekExtEnum"/>
duration
Type:
SettlementPeriodDurationEnum, simple content
The length of each Settlement Period.
Simple Content
enumeration of xsd:token
Enumeration:
"2Hours"
 -
Two-hourly duration applies.
"1Hour"
 -
Hourly duration applies.
"30Minutes"
 -
Half-hourly duration applies.
"15Minutes"
 -
Quarter-hourly duration applies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="duration" type="SettlementPeriodDurationEnum"/>
endTime
Type:
OffsetPrevailingTime, complex content
Specifies the hour-ending End Time with respect to a range of Settlement Periods. If neither startTime nor endTime contain an offset element and endTime is earlier than startTime, this indicates that the time period "wraps around" midnight. For example, if startTime is 23:00 and endTime is 01:00 then Settlement Periods apply from 22:00 to 23:00 and 23:00 to 00:00 and 00:00 to 01:00 on each included day.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="endTime" type="OffsetPrevailingTime"/>
excludeHolidays
Type:
CommodityBusinessCalendar, simple content
Indicates that days that are holidays according to the referenced commodity business calendar should be excluded from this range of Settlement Periods, even if such day is an applicable day.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="excludeHolidays" type="CommodityBusinessCalendar"/>
includeHolidays
Type:
CommodityBusinessCalendar, simple content
Indicates that days that are holidays according to the referenced commodity business calendar should be included in this range of Settlement Periods, even if such day is not an applicable day.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="includeHolidays" type="CommodityBusinessCalendar"/>
startTime
Type:
OffsetPrevailingTime, complex content
Specifies the hour-ending Start Time with respect to a range of Settlement Periods.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="startTime" type="OffsetPrevailingTime"/>
timeDuration
Type:
xsd:time, predefined, simple content
Specifies the duration of the time window during which settlement/delivery occurs.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="timeDuration" type="xsd:time"/>
