element <physicalQuantitySchedule> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ElectricityPhysicalDeliveryQuantitySchedule
Content:	complex, 1 attribute, 4 elements
Defined:	locally within ElectricityPhysicalQuantity complexType in fpml-com-5-13.xsd; see XML source

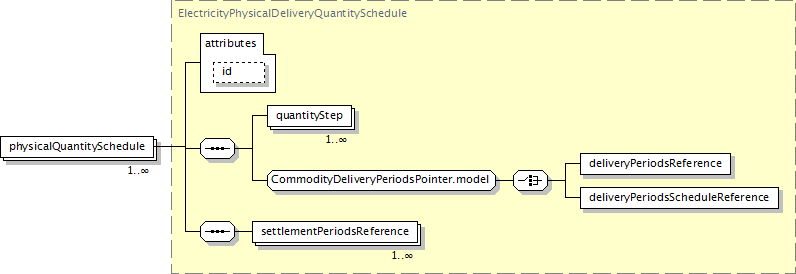

Component Diagram

XML Representation Summary

<physicalQuantitySchedule

xsd:ID

Content:

quantityStep+, (deliveryPeriodsReference | deliveryPeriodsScheduleReference), settlementPeriodsReference+

</physicalQuantitySchedule>

Content model elements (4):

deliveryPeriodsReference,

deliveryPeriodsScheduleReference,

quantityStep,

settlementPeriodsReference (in physicalQuantitySchedule in deliveryQuantity in electricityPhysicalLeg)

Included in content model of elements (1):

deliveryQuantity (in electricityPhysicalLeg)

Annotation

Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction. Note that if the range of Settlement Periods also varies over the life of the transaction this element should not be used. Instead, physicalQuantity should be repeated for each range of Settlement Periods that apply at any point during the trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="physicalQuantitySchedule" type="ElectricityPhysicalDeliveryQuantitySchedule"/>
