complexType "GasDeliveryPeriods"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 7 elements
Defined:
globally in fpml-com-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

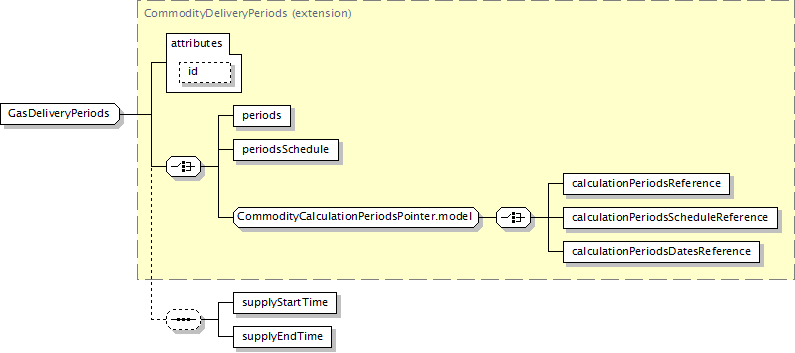

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
(periods | periodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), (supplyStartTime, supplyEndTime)?
</...>
Content Model Elements (7):
calculationPeriodsDatesReference, calculationPeriodsReference, calculationPeriodsScheduleReference, periods, periodsSchedule, supplyEndTime, supplyStartTime
All Direct / Indirect Based Elements (1):
deliveryPeriods  (in gasPhysicalLeg)
Known Usage Locations
Annotation
The different options for specifying the Delivery Periods for a physically settled gas trade.
Type Definition Detail
Type Derivation Tree
CommodityDeliveryPeriods (extension)
  GasDeliveryPeriods
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="GasDeliveryPeriods">
<xsd:complexContent>
<xsd:extension base="CommodityDeliveryPeriods">
<xsd:sequence minOccurs="0">
<xsd:element name="supplyStartTime" type="PrevailingTime"/>
<xsd:element name="supplyEndTime" type="PrevailingTime"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/7)
supplyEndTime
Type:
PrevailingTime, complex content
The time at which gas delivery should end on each day of the Delivery Period(s).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="supplyEndTime" type="PrevailingTime"/>
supplyStartTime
Type:
PrevailingTime, complex content
The time at which gas delivery should start on each day of the Delivery Period(s).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="supplyStartTime" type="PrevailingTime"/>
