element <commodityReturnLeg> (global)
Namespace:
Type:
Content:
complex, 1 attribute, 18 elements
Subst.Gr:
Defined:
globally in fpml-com-5-13.xsd; see XML source
Used:
never

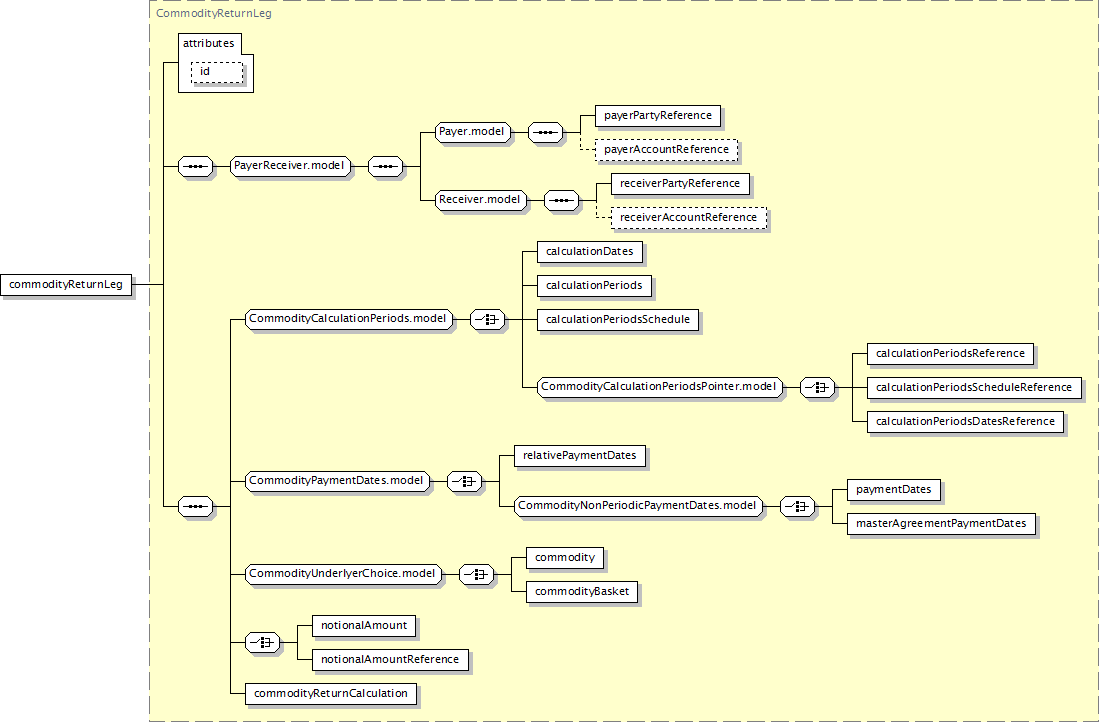

Component Diagram
XML Representation Summary
<commodityReturnLeg

 =
xsd:ID

>

Content:
</commodityReturnLeg>
Content model elements (18):
payerPartyReference (defined in Payer.model group),
May be included in elements by substitutions (1):
Annotation
Specifies the return payments of a commodity return swap. There can be one or two return legs. In simple return swaps there is a return leg and an interest (a.k.a. 'fee') leg. In the case of a outperformance swap there are two return legs: the return performance of two commodity underlyers are swapped. In the case of a fully-funded return swap there is no financing component and, therefore, only a single return leg is specified.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityReturnLeg" substitutionGroup="commodityPerformanceSwapLeg" type="CommodityReturnLeg"/>
