complexType "ClearingStatus"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 9 elements
Defined:	globally in fpml-confirmation-processes-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

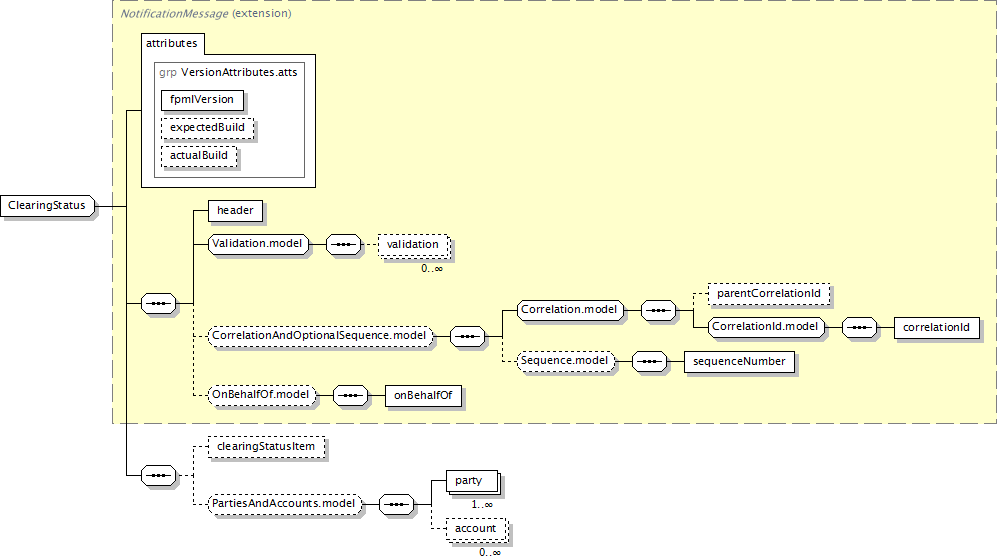

Component Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, onBehalfOf?, clearingStatusItem?, (party+, account*)?

</...>

Content Model Elements (9):

account,

clearingStatusItem,

correlationId,

header (defined in NotificationMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

sequenceNumber (defined in Sequence.model group),

validation

All Direct / Indirect Based Elements (1):

clearingStatus

Known Usage Locations

As direct type of elements (1):

clearingStatus

Annotation

A message providing the current status of a clearing request. The Clearing Status message is designed to be sent from the Clearing House to the participants. The message sends the clearing status of the trade or the trade package. It’s a centralized model so there is no perspective.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

NotificationMessage (extension)

ClearingStatus

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="ClearingStatus">

<xsd:complexContent>

<xsd:extension base="NotificationMessage">

<xsd:sequence>

<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>

<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/9)

clearingStatusItem

Type:

ClearingStatusItem, complex content

Describes the status of the clearing process relating to the identified trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>
