complexType "ConfirmationAgreed"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 25 elements
Defined:
globally in fpml-confirmation-processes-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

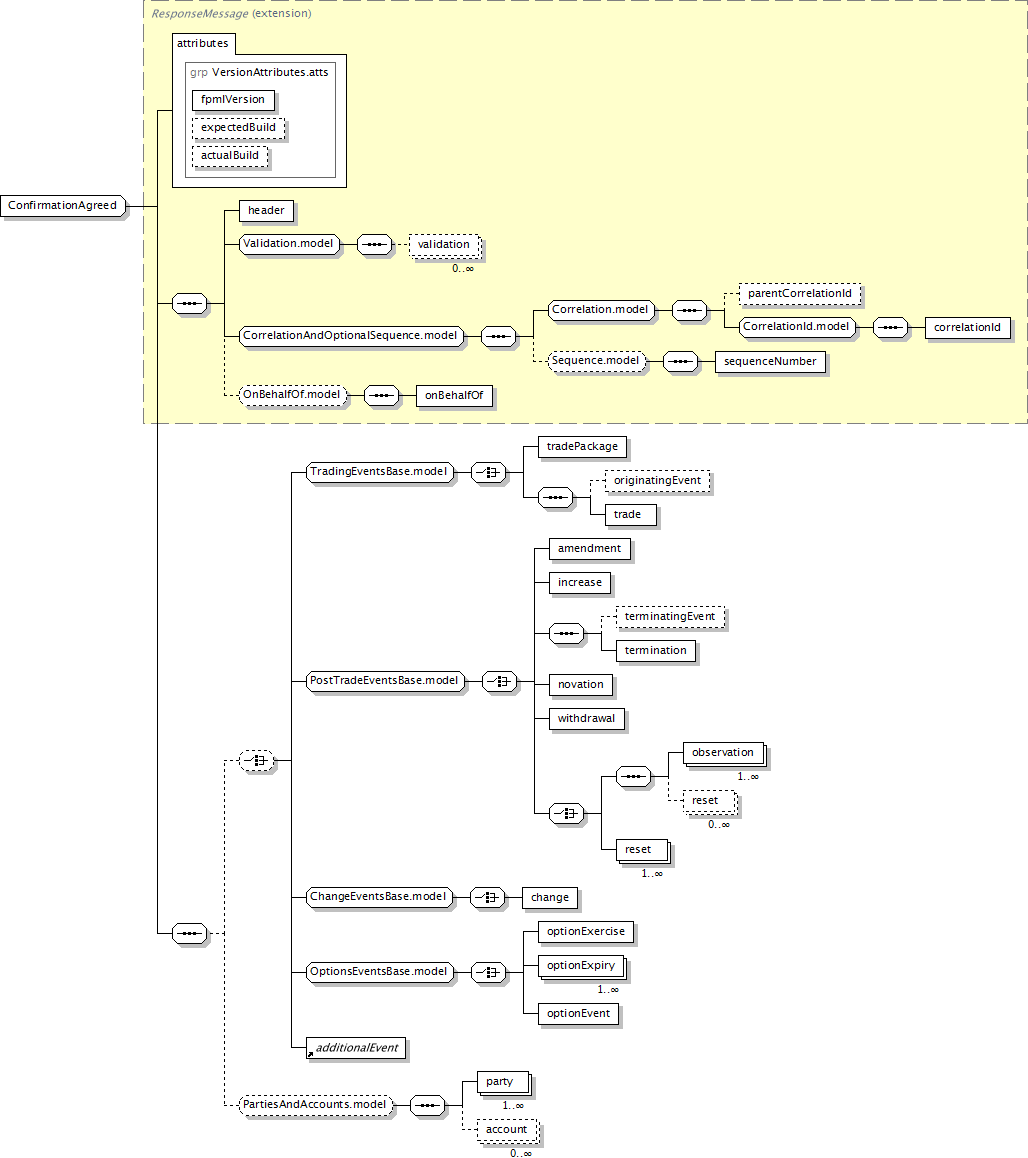

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, parentCorrelationId?, correlationId, sequenceNumber?, onBehalfOf?, (tradePackage | (originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | withdrawal | (observation+, reset*) | reset+ | change | optionExercise | optionExpiry+ | optionEvent | additionalEvent)?, (party+, account*)?
</...>
Content Model Elements (25):
account,
additionalEvent,
amendment (defined in PostTradeEventsBase.model group),
change (defined in ChangeEventsBase.model group),
correlationId,
header (defined in ResponseMessage complexType),
increase,
novation,
observation (defined in PostTradeEventsBase.model group),
onBehalfOf (defined in OnBehalfOf.model group),
optionEvent,
optionExercise (defined in OptionsEventsBase.model group),
optionExpiry (defined in OptionsEventsBase.model group),
originatingEvent (defined in TradingEventsBase.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
reset (defined in PostTradeEventsBase.model group),
reset (defined in PostTradeEventsBase.model group),
sequenceNumber (defined in Sequence.model group),
terminatingEvent (defined in PostTradeEventsBase.model group),
termination (defined in PostTradeEventsBase.model group),
trade (defined in TradingEventsBase.model group),
tradePackage (defined in TradingEventsBase.model group),
validation,
withdrawal
All Direct / Indirect Based Elements (1):
confirmationAgreed
Known Usage Locations
Annotation
A message indicating that a confirmation has been agreed by a counterparty.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      ResponseMessage (extension)
          ConfirmationAgreed
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="ConfirmationAgreed">
<xsd:complexContent>
<xsd:extension base="ResponseMessage">
<xsd:sequence>
<xsd:choice minOccurs="0">
<xsd:group ref="TradingEventsBase.model"/>
<xsd:group ref="PostTradeEventsBase.model"/>
<xsd:group ref="ChangeEventsBase.model"/>
<xsd:group ref="OptionsEventsBase.model"/>
<xsd:element ref="additionalEvent"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/25)
additionalEvent
Type:
AdditionalEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
XML Source (see within schema source)
<xsd:element ref="additionalEvent"/>
