complexType "RequestTradeReferenceInformationUpdate"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 10 elements
Defined:
globally in fpml-confirmation-processes-5-13.xsd; see XML source
Used:
at 1 location

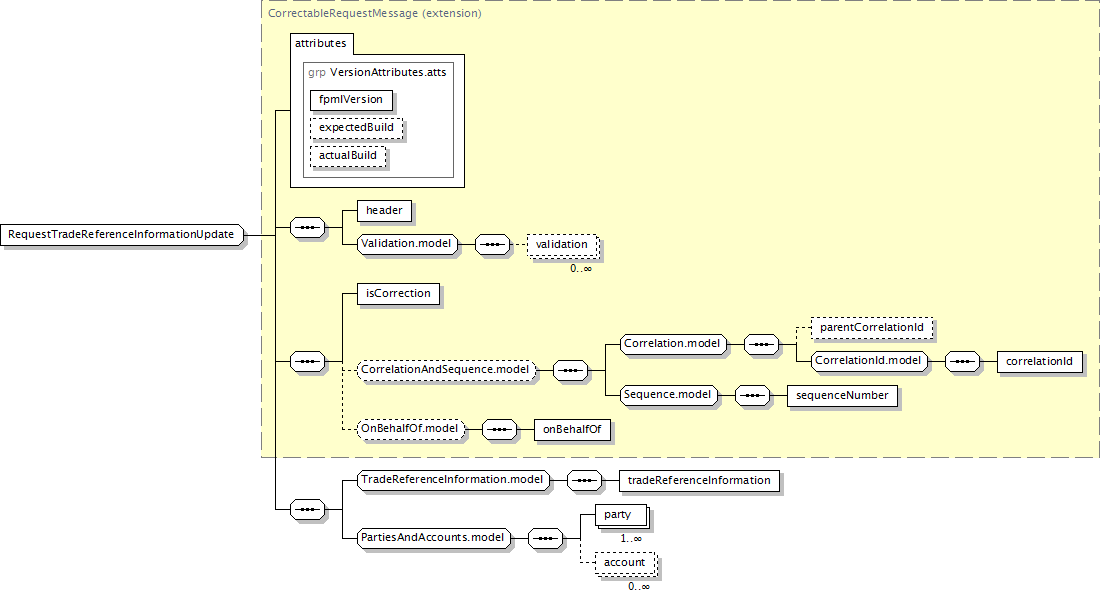

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, tradeReferenceInformation, party+, account*
</...>
Content Model Elements (10):
account,
correlationId,
header (defined in RequestMessage complexType),
isCorrection,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
tradeReferenceInformation,
validation
All Direct / Indirect Based Elements (1):
requestTradeReferenceInformationUpdate
Known Usage Locations
Annotation
Defines the structure for a message requesting information updates to a trade. The trade reference information should contain at least one trade identifier that the recipient is aware of.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              RequestTradeReferenceInformationUpdate
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="RequestTradeReferenceInformationUpdate">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:group ref="TradeReferenceInformation.model"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
