complexType "CreditEventNoticeDocument"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 8 elements
Defined:
globally in fpml-credit-event-notification-5-13.xsd; see XML source
Includes:
definitions of 8 elements
Used:
at 3 locations

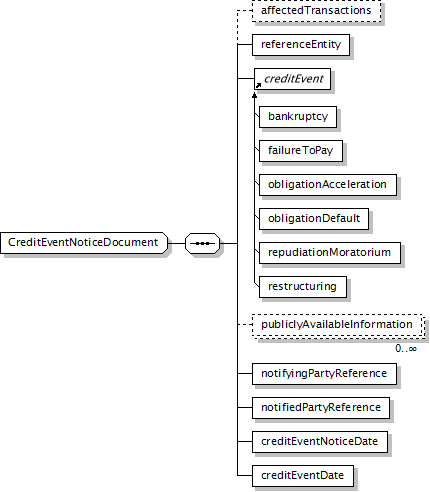

Component Diagram
XML Representation Summary
<...>

Content:
affectedTransactions?, referenceEntity, creditEvent, publiclyAvailableInformation*, notifyingPartyReference, notifiedPartyReference, creditEventNoticeDate, creditEventDate
</...>
Content Model Elements (8):
affectedTransactions,
creditEvent,
creditEventDate,
creditEventNoticeDate,
notifiedPartyReference,
notifyingPartyReference,
publiclyAvailableInformation (defined in CreditEventNoticeDocument complexType),
referenceEntity (defined in CreditEventNoticeDocument complexType)
All Direct / Indirect Based Elements (3):
creditEventNotice,
creditEventNotice (in creditEventNotification),
creditEventNotice (in creditEventNotificationRetracted)
Known Usage Locations
Annotation
An event type that records the occurrence of a credit event notice.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="CreditEventNoticeDocument">
<xsd:sequence>
<xsd:element minOccurs="0" name="affectedTransactions" type="AffectedTransactions"/>
<xsd:element name="referenceEntity" type="LegalEntity"/>
<xsd:element ref="creditEvent"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="publiclyAvailableInformation" type="Resource"/>
<xsd:element name="notifyingPartyReference" type="PartyReference"/>
<xsd:element name="notifiedPartyReference" type="PartyReference"/>
<xsd:element name="creditEventNoticeDate" type="xsd:date"/>
<xsd:element name="creditEventDate" type="xsd:date"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 8/8)
affectedTransactions
Type:
AffectedTransactions, complex content
Trades affected by this event.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="affectedTransactions" type="AffectedTransactions"/>
creditEvent
Type:
CreditEvent, empty content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 6 elements
XML Source (see within schema source)
<xsd:element ref="creditEvent"/>
creditEventDate
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element name="creditEventDate" type="xsd:date"/>
creditEventNoticeDate
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element name="creditEventNoticeDate" type="xsd:date"/>
notifiedPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element name="notifiedPartyReference" type="PartyReference"/>
notifyingPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element name="notifyingPartyReference" type="PartyReference"/>
publiclyAvailableInformation
Type:
Resource, complex content
A public information source, e.g. a particular newspaper or electronic news service, that may publish relevant information used in the determination of whether or not a credit event has occurred.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="publiclyAvailableInformation" type="Resource"/>
referenceEntity
Type:
LegalEntity, complex content
XML Source (see within schema source)
<xsd:element name="referenceEntity" type="LegalEntity"/>
