complexType "AdditionalData"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-doc-5-13.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 2 locations

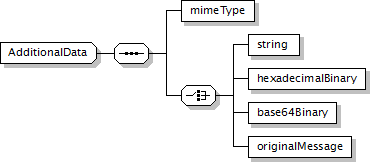

Component Diagram
XML Representation Summary
<...>

Content:
mimeType, (string | hexadecimalBinary | base64Binary | originalMessage)
</...>
Content Model Elements (5):
base64Binary (defined in AdditionalData complexType),
hexadecimalBinary (defined in AdditionalData complexType),
mimeType (defined in AdditionalData complexType),
originalMessage (defined in AdditionalData complexType),
string (defined in AdditionalData complexType)
All Direct / Indirect Based Elements (2):
additionalData (defined in Exception.model group),
additionalData (defined in Reason complexType)
Known Usage Locations
Annotation
Provides extra information not represented in the model that may be useful in processing the message i.e. diagnosing the reason for failure.
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="AdditionalData">
<xsd:sequence>
<xsd:element name="mimeType" type="MimeType"/>
<xsd:choice>
<xsd:element name="string" type="NonEmptyString"/>
<xsd:element name="hexadecimalBinary" type="xsd:hexBinary"/>
<xsd:element name="base64Binary" type="xsd:base64Binary"/>
<xsd:element name="originalMessage" type="UnprocessedElementWrapper"/>
</xsd:choice>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 5/5)
base64Binary
Type:
xsd:base64Binary, predefined, simple content
Provides extra information as binary contents coded in base64.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="base64Binary" type="xsd:base64Binary"/>
hexadecimalBinary
Type:
xsd:hexBinary, predefined, simple content
Provides extra information as binary contents coded in hexadecimal.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="hexadecimalBinary" type="xsd:hexBinary"/>
mimeType
Type:
MimeType, simple content
Indicates the type of media used to provide the extra information. mimeType is used to determine the software product(s) that can read the content. MIME Types are described in RFC 2046.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="mimeType" type="MimeType"/>
originalMessage
Type:
UnprocessedElementWrapper, complex content
Provides the content of the original message.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="originalMessage" type="UnprocessedElementWrapper"/>
string
Type:
NonEmptyString, simple content
Provides extra information as string. In case the extra information is in XML format, a CDATA section must be placed around the source message to prevent its interpretation as XML content.
Simple Content
xsd:string
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="string" type="NonEmptyString"/>
